ca77 tail light question

Charging System, Wiring, Lighting
Post Reply
choctaw
honda305.com Member
Posts: 85
Joined: Sun Oct 04, 2015 11:26 am
Location: texas

ca77 tail light question

Post by choctaw » Sat Jun 06, 2020 2:44 pm

Hello all,My 1966 ca77 has a 5 position key switch.I just rebuilt my wiring harness. every wire has continuity from one end to the other on all wires. My question is when you are in switch postion #4 and #5 should both tail light elements be on. (brake and tail light) at the same time?thank you. Michael

User avatar
Muddy
honda305.com Member
Posts: 198
Joined: Wed Mar 30, 2011 11:03 pm
Location: Sunshine Coast, QLD, Australia

Re: ca77 tail light question

Post by Muddy » Sat Jun 06, 2020 4:04 pm

G'day Michael

No I don't think they should both be on unless the brake light switch is closed circuit (activated).

I hope the attached assists.
Honda C CA 72 77 Colour Wiring Diagram.jpg

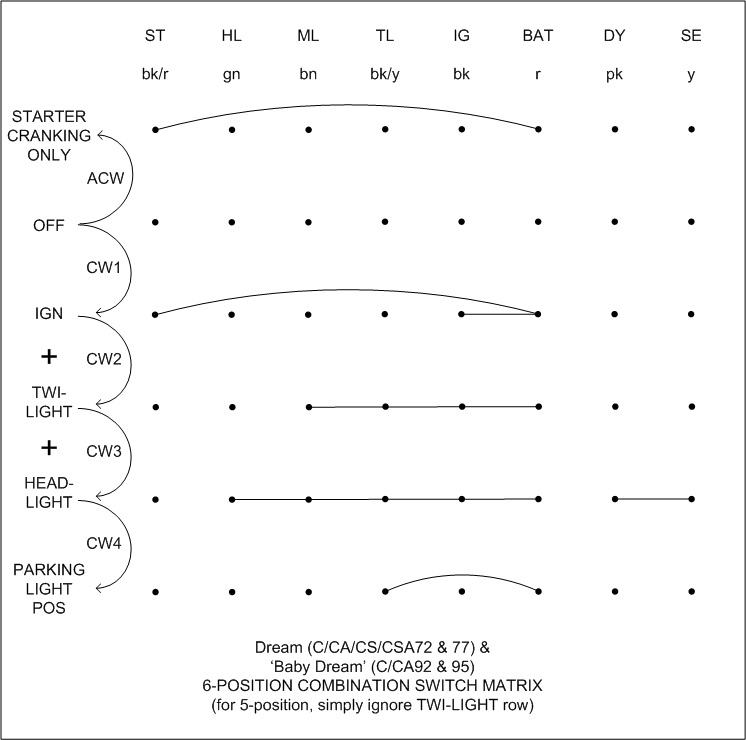

C_CA Dream combi switch matrix.jpg
Attachments
C_CA Dream combi switch matrix.jpg
Honda C CA 72 77 Colour Wiring Diagram.jpg
Thanks.

Regards

Muddy

'64 C72
