Post by Seadog » Sun Mar 22, 2015 10:55 am

deafanddiabetic wrote:No problem with the reflective coating, I think mostly because the soldering was all applied to the back of the contoured casing. I'm pretty sure I used Rosin Core 60/40. It's held on, taken the heat, and seems like it's working alright. It was pretty shoddy and quick, honestly totally on the fly one afternoon in the dungeon and now I see that others have tried the same method with success.
Thanks for that info.

The headlight is almost ready for paint. I'll have to get something heat resistant.
Attachments

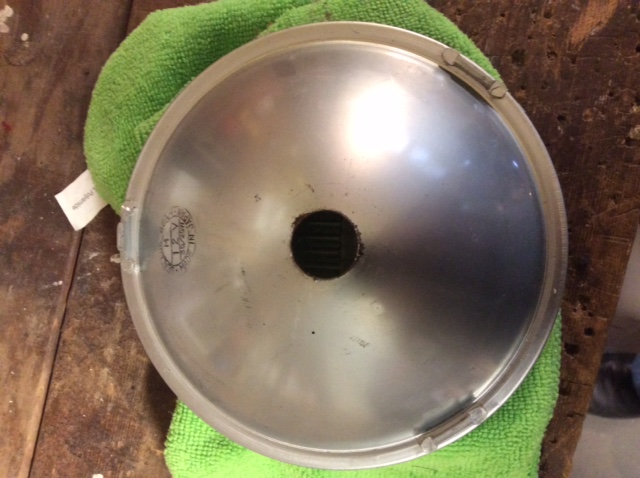

A little clean-up, then paint
A little clean-up, then paint
Top
User avatar
Seadog
honda305.com Member
Posts: 1272
Joined: Thu Dec 25, 2014 9:54 am
Location: Cape Cod, MA

Post by Seadog » Mon Mar 23, 2015 11:53 am

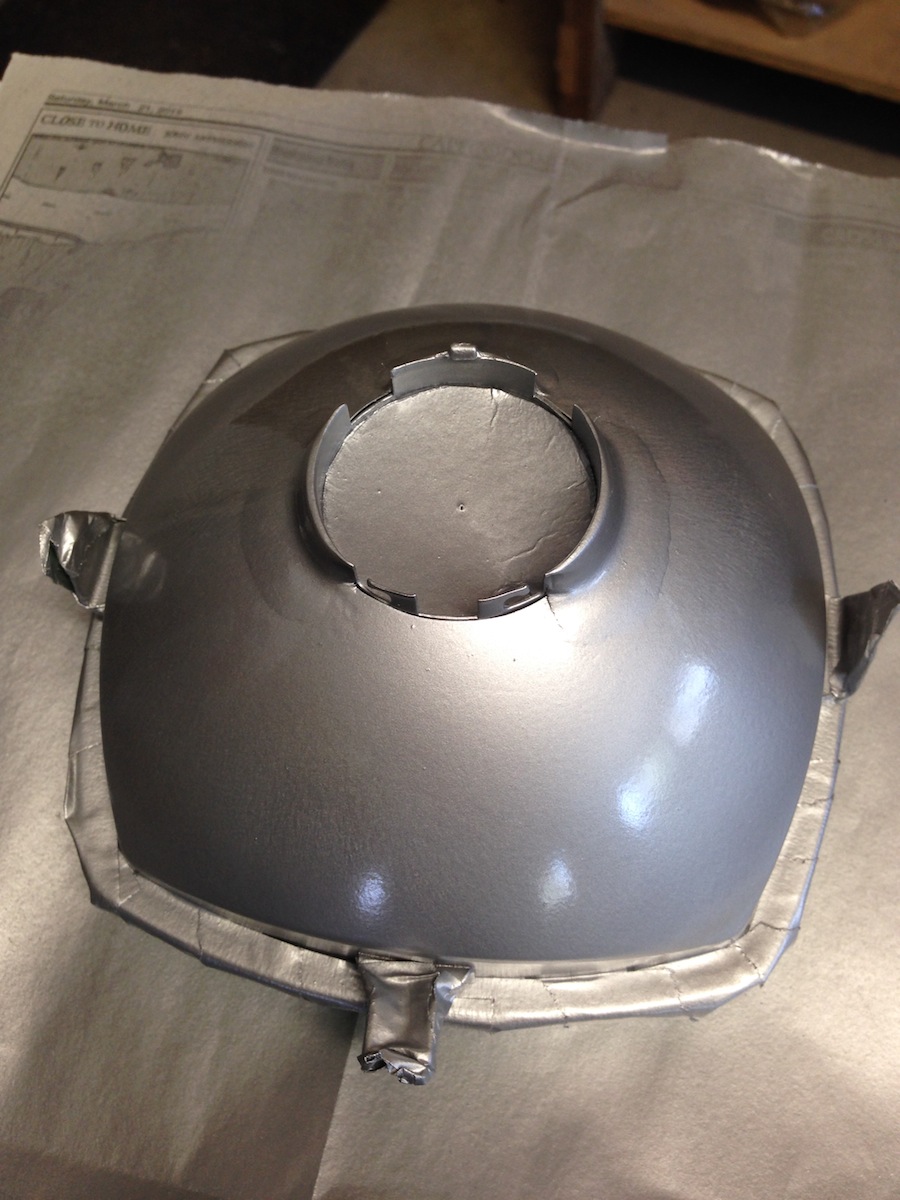

Done. 3 coats of heat resistant primer and 3 top coat. Not perfect, but ok.
Attachments
Top
User avatar
Seadog
honda305.com Member
Posts: 1272
Joined: Thu Dec 25, 2014 9:54 am
Location: Cape Cod, MA

Post by Seadog » Sun Mar 29, 2015 8:44 am

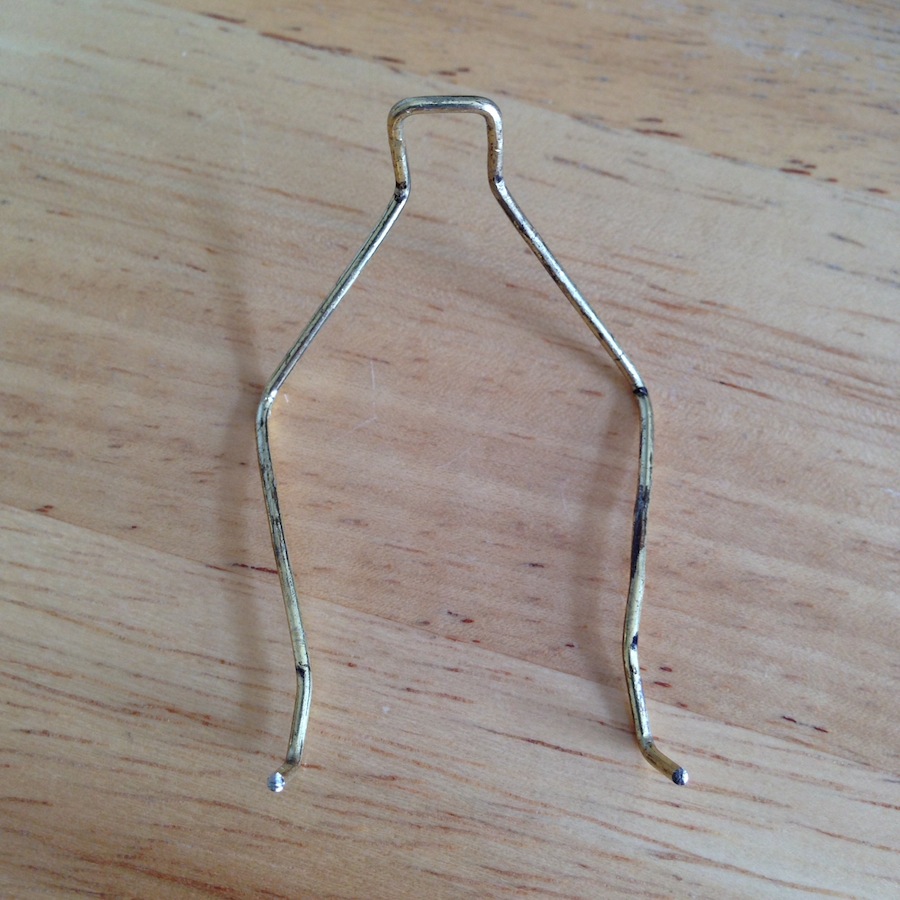

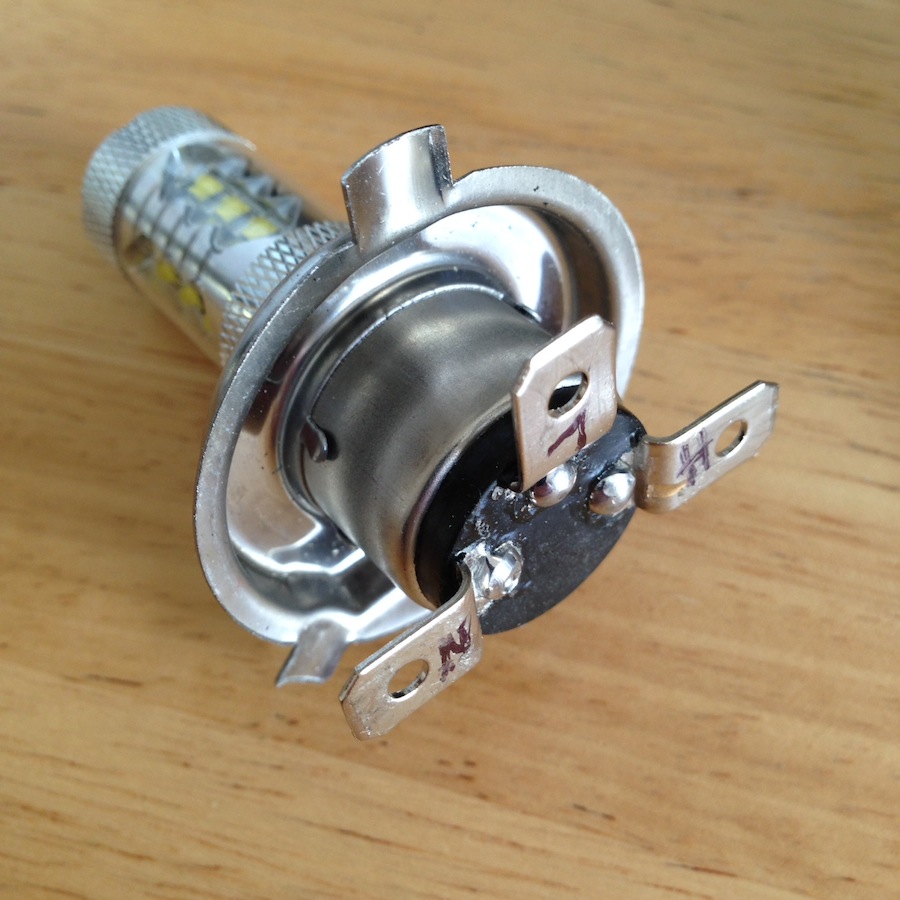

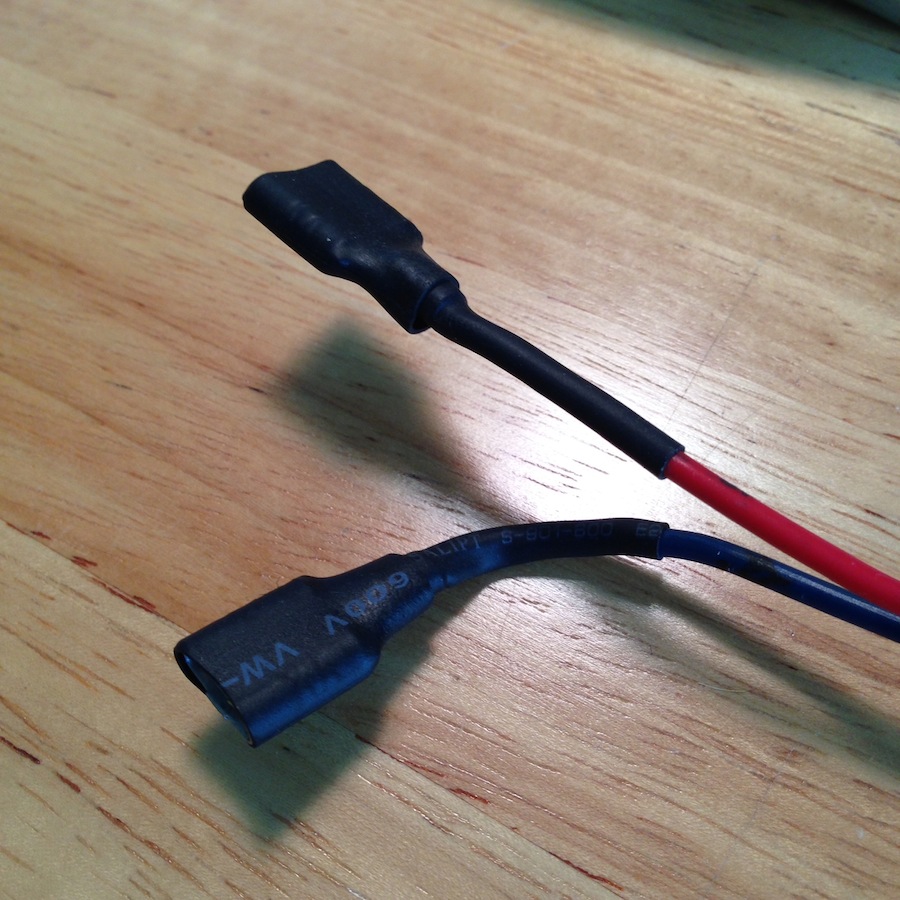

I'm pretty much done with this project now. I had to make a new wire bail for the bulb, since the original wasn't bent in a way that held the bulb in place for this application. I also bought an LED bulb and bent the tabs for fit into the headlight bucket. After a long search, I finally found the .375" wide female spade connectors locally and soldered them to the existing wires. I tested the light with a battery and all is well.
Attachments
Top
User avatar
Seadog
honda305.com Member
Posts: 1272
Joined: Thu Dec 25, 2014 9:54 am
Location: Cape Cod, MA

Post by Seadog » Mon Nov 09, 2015 4:47 pm

I thought I'd try to convert a CB77 headlight….
Attachments

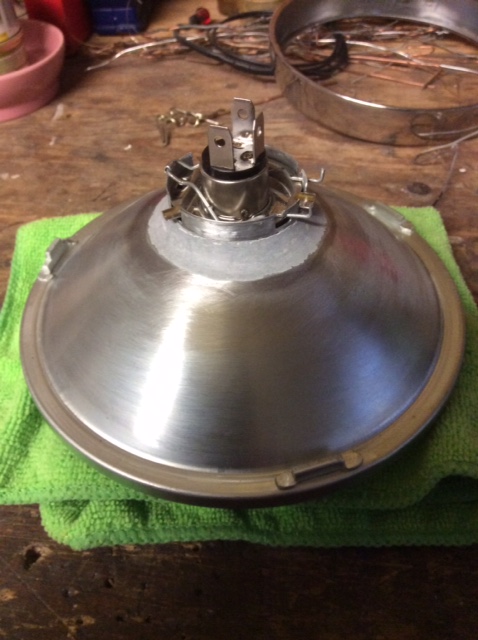

How the bulb holder will sit.
How the bulb holder will sit.

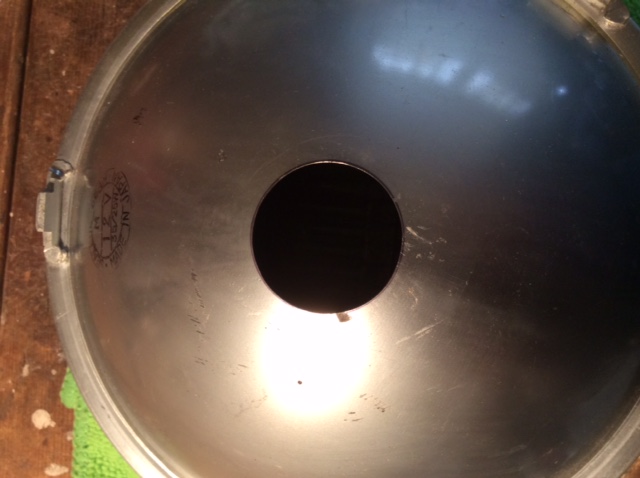

Hole refined.
Hole refined.

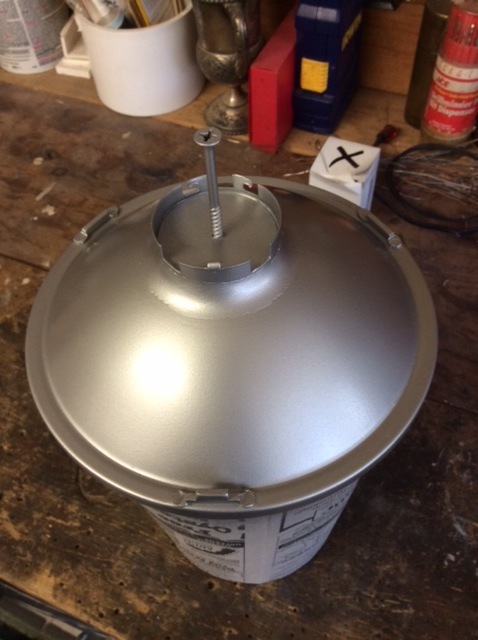

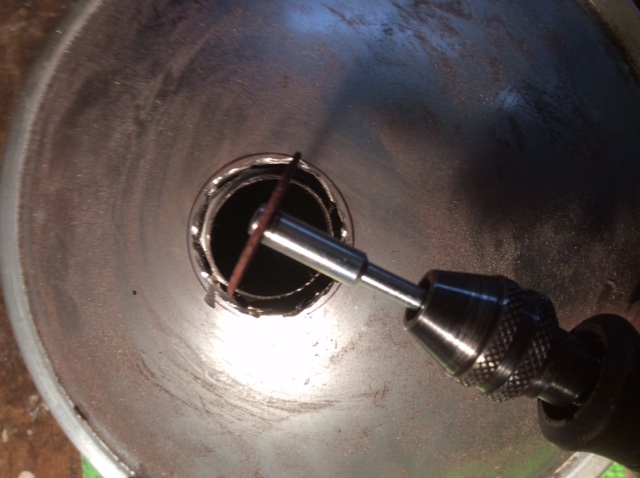

Rough hole cut.
Rough hole cut.

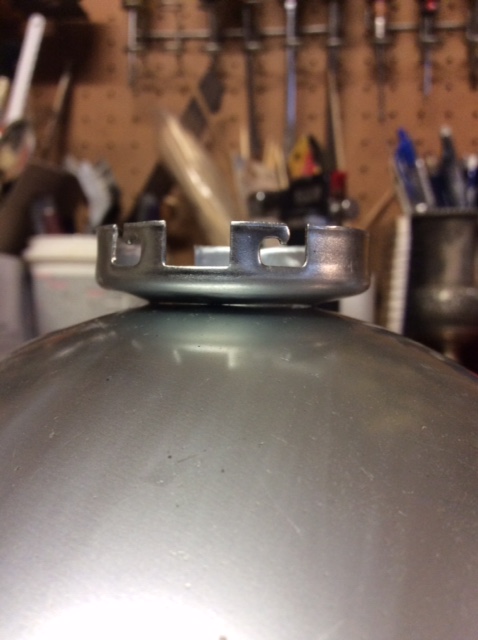

Marked for hole enlargement.
Marked for hole enlargement.

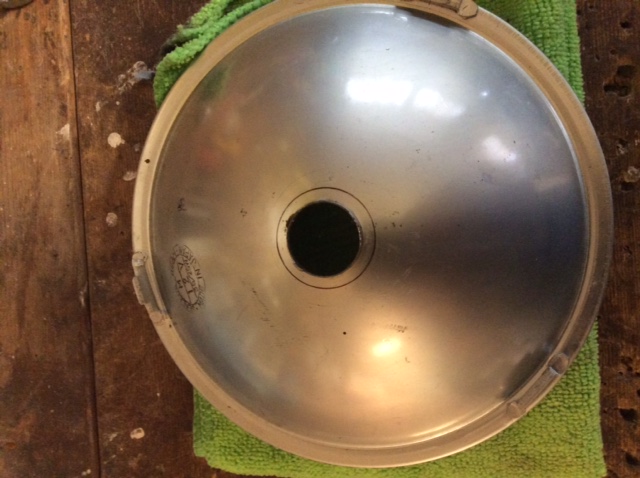

Bulb removed
Bulb removed
Last edited by Seadog on Sun Jan 07, 2018 10:56 am, edited 1 time in total.
Top
User avatar
G-Man
honda305.com Member
Posts: 5681
Joined: Wed Mar 25, 2009 5:17 pm
Location: Derby, UK
Contact:
Contact G-Man

Post by G-Man » Mon Nov 09, 2015 4:54 pm

Great work!

Does anyone know why American Hondas used those crazy sealed beam headlights when the rest of the world got headlamps with replaceable bulbs? Was it a legal thing or some other reason?

G
'60 C77 '60 C72 '62 C72 Dream '63 CL72
'61 CB72 '64 CB77 '65 CB160
'66 Matchless 350 '67 CL77
'67 S90 '77 CB400F
Top
User avatar
Seadog
honda305.com Member
Posts: 1272
Joined: Thu Dec 25, 2014 9:54 am
Location: Cape Cod, MA

Post by Seadog » Mon Nov 09, 2015 4:55 pm

Continued.
Attachments

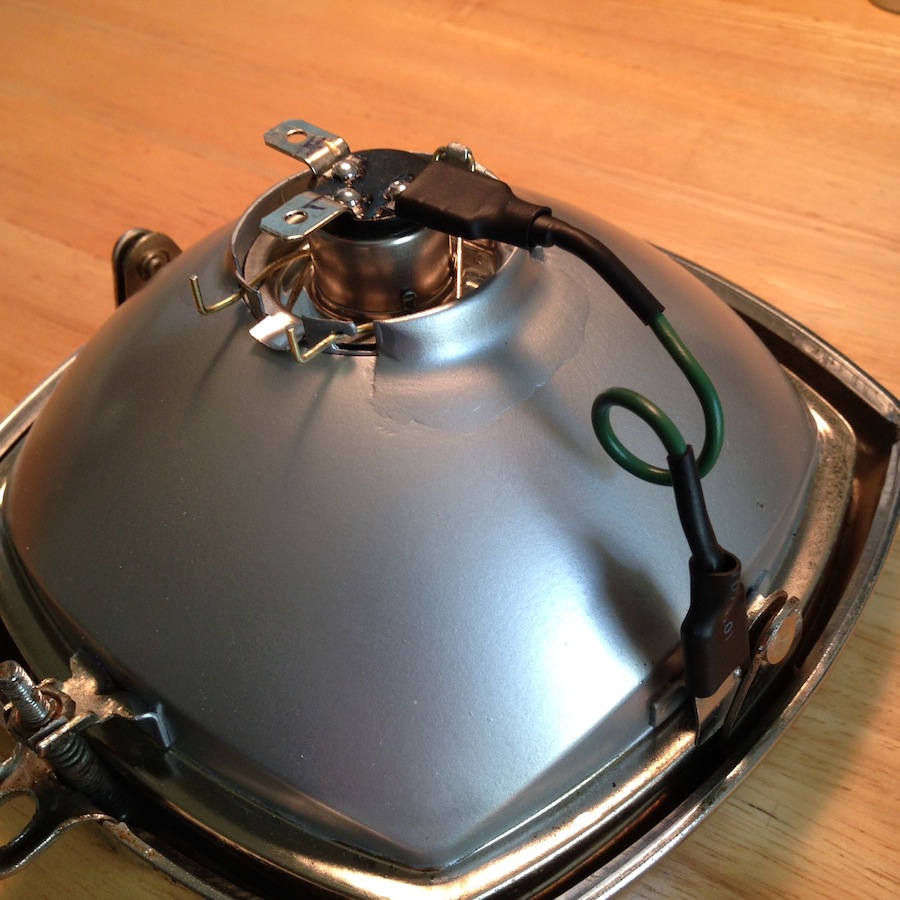

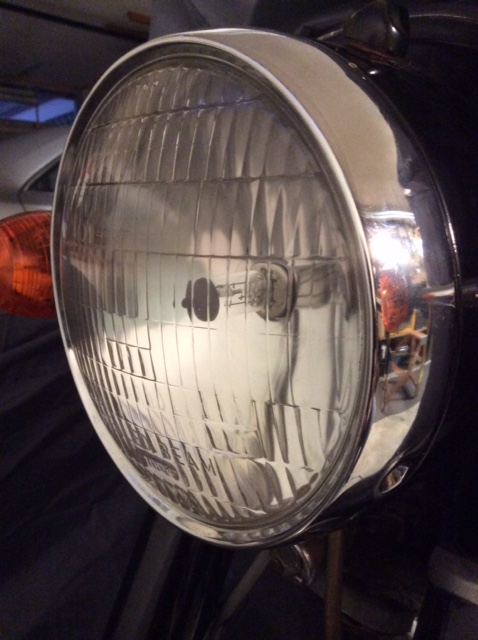

Installed. I'm waiting for an LED bulb.
Installed. I'm waiting for an LED bulb.
Painted.
Painted.

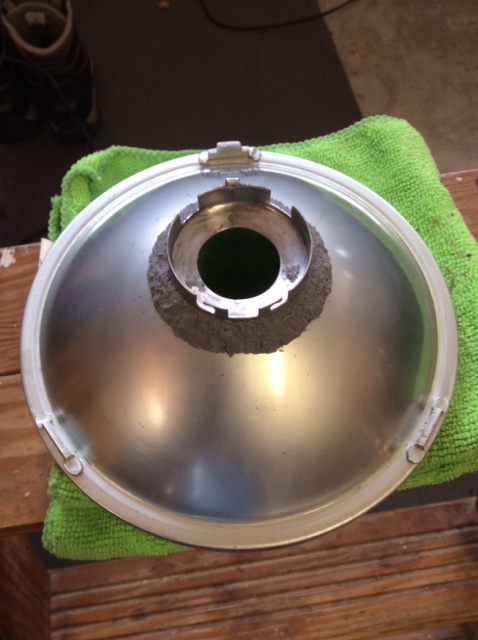

JB Weld shaped and sanded.I wish I was able to feather the edge of JB Weld like I can Bondo. The edge just crumbles.
JB Weld shaped and sanded.I wish I was able to feather the edge of JB Weld like I can Bondo. The edge just crumbles.

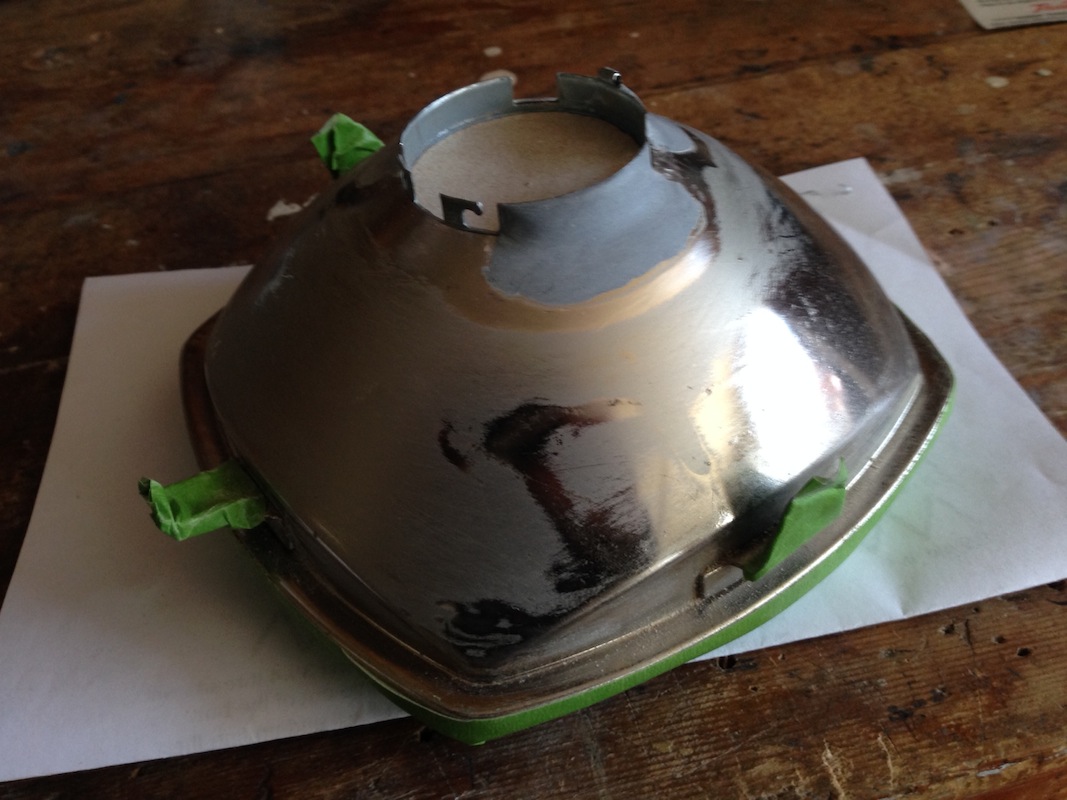

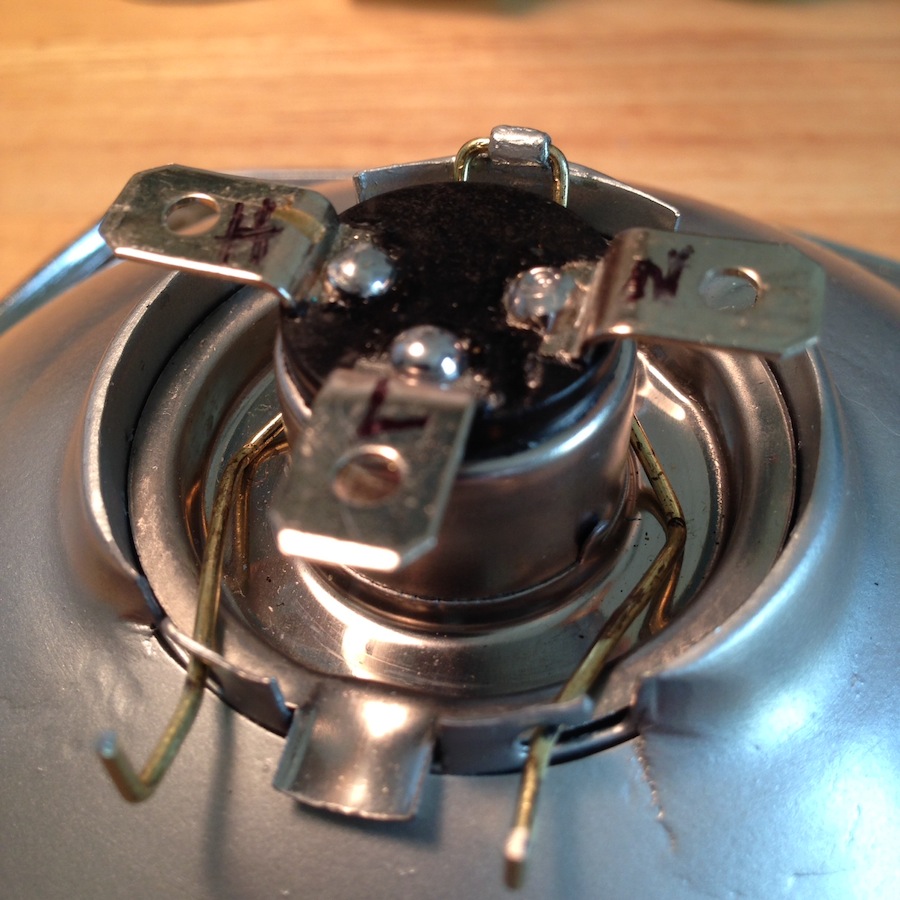

JB Weld applied and rough shaped with a dental tool. I drilled 3 ⅛" holes in the bulb holder and forced JB through for greater holding power.
JB Weld applied and rough shaped with a dental tool. I drilled 3 ⅛" holes in the bulb holder and forced JB through for greater holding power.
Top
User avatar
Seadog
honda305.com Member
Posts: 1272
Joined: Thu Dec 25, 2014 9:54 am
Location: Cape Cod, MA

Post by Seadog » Mon Nov 09, 2015 4:57 pm

G-Man wrote:Great work!

Does anyone know why American Hondas used those crazy sealed beam headlights when the rest of the world got headlamps with replaceable bulbs? Was it a legal thing or some other reason?

G
Dunno, G. Probably so they could soak more $ out of us.
