Cb77 fork tubes

versuspop · Post by **versuspop** » Sat Jun 21, 2014 12:17 pm

Howdy!

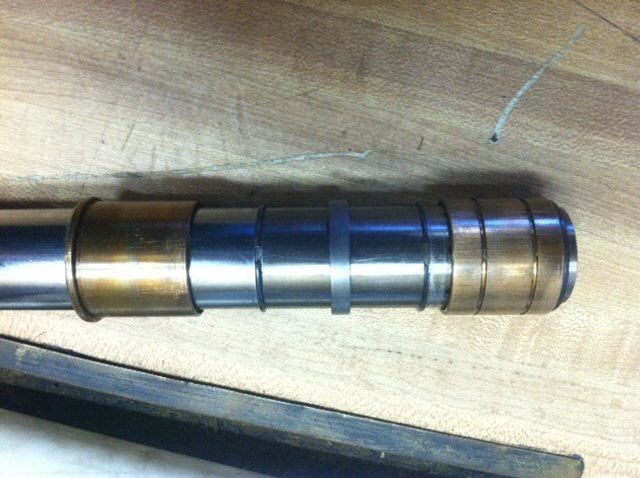

I am putting the front forks back together and I can't remember if this is the right order of things. Do I have the tube components in the right order?
Also, there is a beveled side of the silver ring. Does it face up or down?
66 cb77
Hope the pic works!!

Ian

versuspop · Post by **versuspop** » Sat Jun 21, 2014 12:20 pm

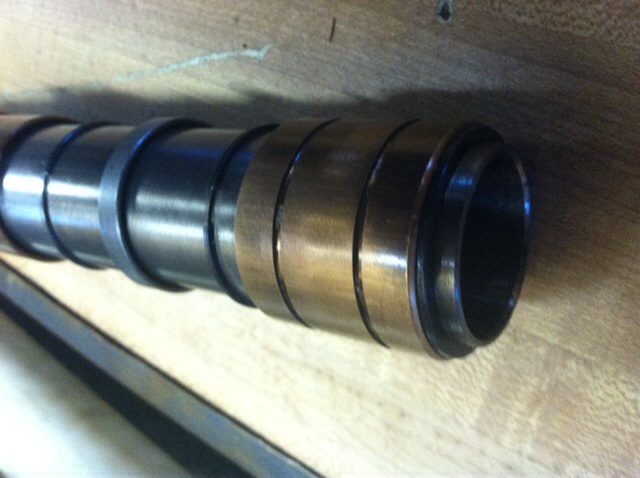

Here is another view

G-Man · Post by **G-Man** » Sat Jun 21, 2014 1:15 pm

The steel ring fits above the lower bush with the flat circlip above it.

G

versuspop · Post by **versuspop** » Sat Jun 21, 2014 2:30 pm

Thanks- and does the orientation of the steel ring's bevel matter?

G-Man · Post by **G-Man** » Sat Jun 21, 2014 3:10 pm

The bevel does matter but I cannot recollect which way it goes.

Down, I think as the flat upper face then rests agains the flat circlip.....

G

LOUD MOUSE · Post by **LOUD MOUSE** » Sun Jun 22, 2014 6:58 am

You are correct. ...........lm

G-Man wrote:The bevel does matter but I cannot recollect which way it goes.

Down, I think as the flat upper face then rests agains the flat circlip.....

G

G-Man · Post by **G-Man** » Sun Jun 22, 2014 9:15 am

Thanks, LM!

I always try and lay those parts out in order and photograph them, but its never foolproof....

G
