botton 2 jets

choctaw · Post by **choctaw** » Sat Oct 17, 2015 10:43 am

I have a ca77 carb on my 305 dream.waiting on kit to arrive. cleaning in a berryman carb can. can anyone tell me how to get the 2 bottom jets out. thanks

roadrunner · Post by **roadrunner** » Tue Nov 03, 2015 10:57 pm

i am new at this myself i just got my 1965 CA77 Dream.there are 2 people in the forum that have really helped me.1 Is Loud Mouth and G-Man i'm sure there are a lot more members that can help us out these are just 2 that have helped me out.ttyl

G-Man · Post by **G-Man** » Wed Nov 04, 2015 2:37 am

Can you explain you problem a little more, please?

The jets have screwdriver slots in them so it is just a matter of unscrewing them. If they are corroded you may need to soak in carb cleaner. I use an ultrasonic cleaning bath to free up things like that.

G

choctaw wrote:I have a ca77 carb on my 305 dream.waiting on kit to arrive. cleaning in a berryman carb can. can anyone tell me how to get the 2 bottom jets out. thanks

choctaw · Post by **choctaw** » Wed Nov 04, 2015 7:41 am

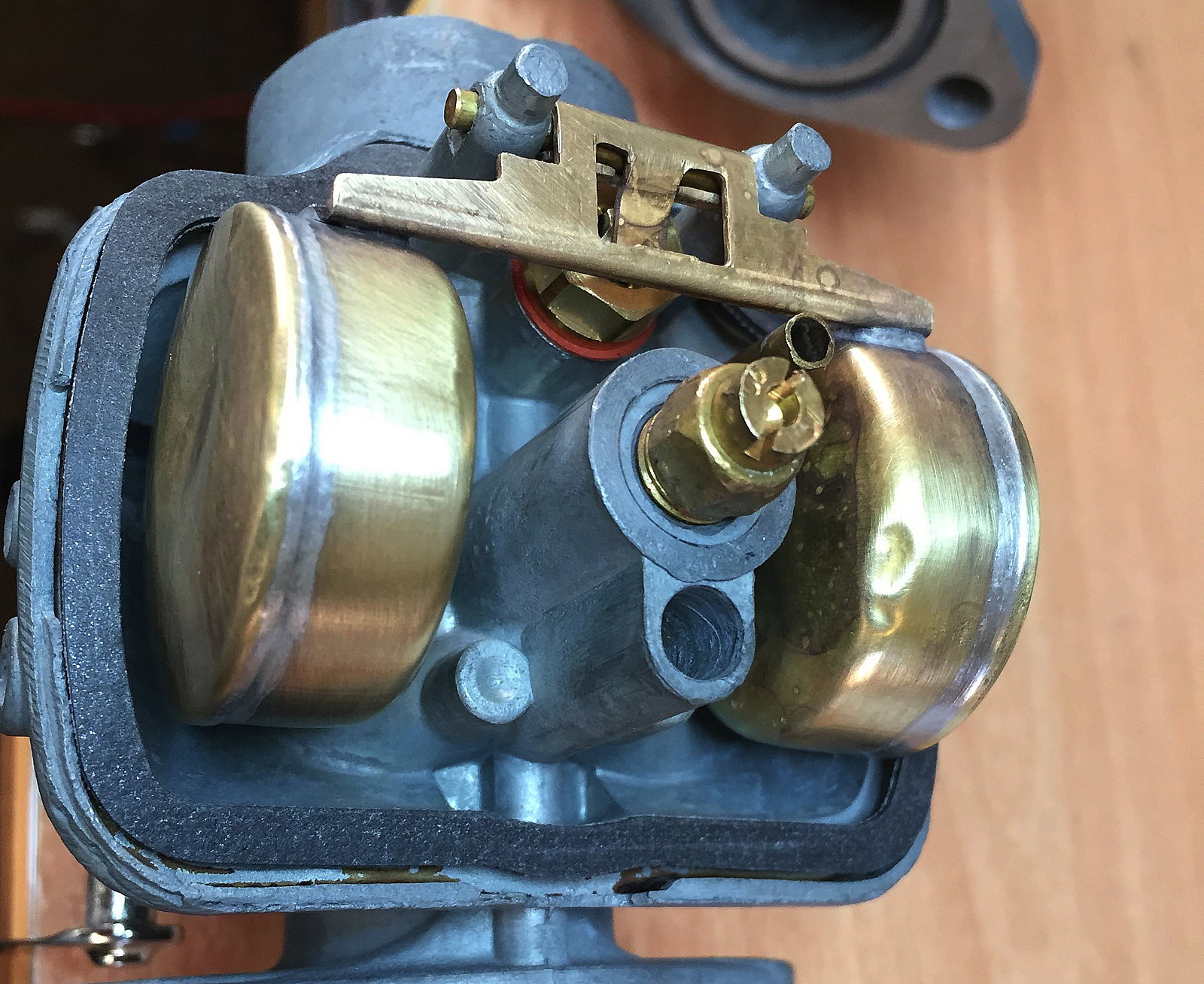

well,I used poor choice of words. I dissembled carb.Inside the carburetor there are 2 holes with small brass holes, I assume they are for fuel to expel if the float is set too rich. I got a new complete carb kit. and I don't think you touch those 2 holes. If you are viewing carb . right side up they are about half way up on the sides. thanks

Hoosier Tom · Post by **Hoosier Tom** » Wed Nov 04, 2015 9:27 am

If I follow you correctly, those are vent holes and they are not designed for removal. If you turn the carb right side up you should see a small cast tube with a little hole near the top that corresponds to one those hole(s) in the roof of the fuel chamber.

HT
