Squealing noise around stator and slow return to idles

Brickyard · Post by **Brickyard** » Tue Nov 10, 2015 3:46 am

Roughly, and within a mm or 2...

Brickyard wrote:G,

I cant accurately measure all areas in the cylinder as I dont have a micrometer, however, my digital caliper allows me to measure 1/4 inch from the top and bottom of the cylinder. My results are as follow:

Brickyard · Post by **Brickyard** » Fri Nov 13, 2015 2:34 am

So after a few days off, Im back on it...

Brickyard · Post by **Brickyard** » Fri Nov 13, 2015 2:37 am

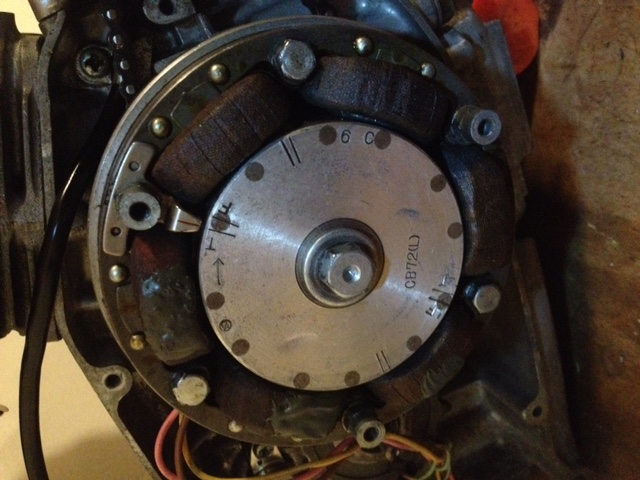

If you're wondering, thats jb weld sealing my stator coils from the environment. Seems to be working just fine after 3 years, bench test shows under 2 ohms comparing brown and pink/ brown and yellow.

Brickyard · Post by **Brickyard** » Fri Nov 13, 2015 3:09 am

Before completely patching the engine up, my memory kicked in:

Im used to the crankshaft being almost spring loaded (compression stroke?) at TDC making it damn near impossible to hold at T without a rigged wrench. This time, this spring loaded feeling is 180 degrees off at LTDC.

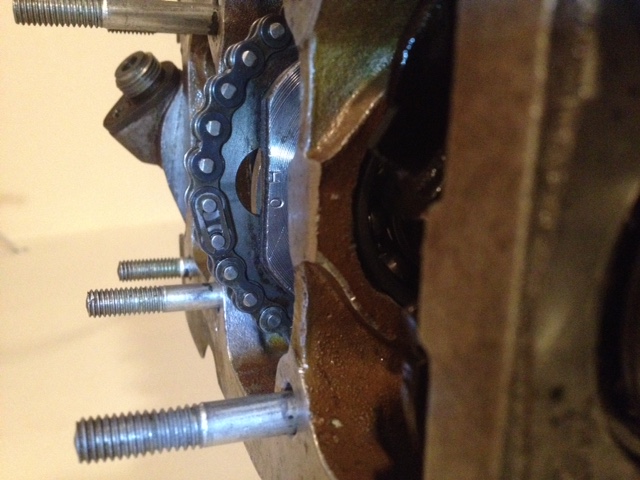

My cam sprocket mark is pointed up, the line on the points cam is pointed up, and my crank is at at T before installing the cam chain. Am i missing something?

LOUD MOUSE · Post by **LOUD MOUSE** » Fri Nov 13, 2015 7:59 am

Have you adjusted all the rockers?. .......lm

Brickyard wrote:Before completely patching the engine up, my memory kicked in:

Im used to the crankshaft being almost spring loaded (compression stroke?) at TDC making it damn near impossible to hold at T without a rigged wrench. This time, this spring loaded feeling is 180 degrees off at LTDC.

My cam sprocket mark is pointed up, the line on the points cam is pointed up, and my crank is at at T before installing the cam chain. Am i missing something?

Brickyard · Post by **Brickyard** » Fri Nov 13, 2015 12:10 pm

Didn't touch them. The head was fine before the teardown.

LOUD MOUSE wrote:Have you adjusted all the rockers?. .......lm

Brickyard wrote:Before completely patching the engine up, my memory kicked in:

Im used to the crankshaft being almost spring loaded (compression stroke?) at TDC making it damn near impossible to hold at T without a rigged wrench. This time, this spring loaded feeling is 180 degrees off at LTDC.

My cam sprocket mark is pointed up, the line on the points cam is pointed up, and my crank is at at T before installing the cam chain. Am i missing something?

LOUD MOUSE · Post by **LOUD MOUSE** » Fri Nov 13, 2015 2:40 pm

Must have been some job to get the chain on the sprocket.
You didn't get the same "T" as you came around?. .......lm

Brickyard wrote:Didn't touch them. The head was fine before the teardown.

LOUD MOUSE wrote:Have you adjusted all the rockers?. .......lm

Brickyard wrote:Before completely patching the engine up, my memory kicked in:

Im used to the crankshaft being almost spring loaded (compression stroke?) at TDC making it damn near impossible to hold at T without a rigged wrench. This time, this spring loaded feeling is 180 degrees off at LTDC.

My cam sprocket mark is pointed up, the line on the points cam is pointed up, and my crank is at at T before installing the cam chain. Am i missing something?
