front end assembly

big-b · Post by **big-b** » Mon Oct 25, 2010 7:47 am

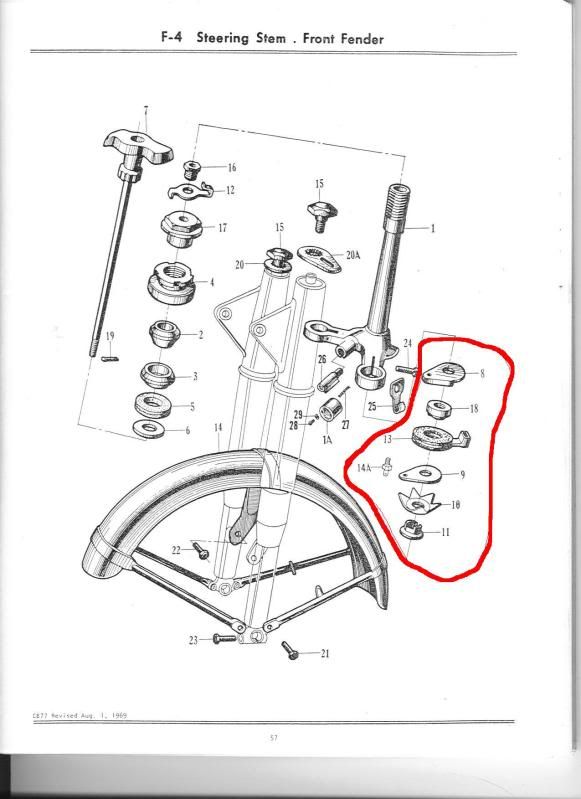

I'm just starting to get some of my bike back together and although i took tons of pictures they don't really help when the previous owner didn't have all the parts. The area of the picture that is highlighted in red is what i'm confused about. Are these parts aligned in the correct order for assembly? It seems that Part #18 is already attached to the forks and then i slide the rest of the parts on. I screw in #14A the little threaded pin, then when i put on part #8 it hits up against the nut part of 14A and leaves about 3/16" of space bettween the lower triple tree and part #8.

Maybe someone could provide a couple pics of this area and that might solve my problem or help me ask the right questions.

Thanks,

Brian

LOUD MOUSE · Post by **LOUD MOUSE** » Mon Oct 25, 2010 8:06 am

#18 is installed already.
#14A holds 18 to the TC then ya make a sandwich of the other parts. ........lm

big-b wrote:I'm just starting to get some of my bike back together and although i took tons of pictures they don't really help when the previous owner didn't have all the parts. The area of the picture that is highlighted in red is what i'm confused about. Are these parts aligned in the correct order for assembly? It seems that Part #18 is already attached to the forks and then i slide the rest of the parts on. I screw in #14A the little threaded pin, then when i put on part #8 it hits up against the nut part of 14A and leaves about 3/16" of space bettween the lower triple tree and part #8.

Maybe someone could provide a couple pics of this area and that might solve my problem or help me ask the right questions.

Thanks,

Brian

big-b · Post by **big-b** » Mon Oct 25, 2010 8:25 am

Do you mean 14A holds 8 on and then the sandwich?

8 slides on then 14A is threaded in holding 8 in place?

LOUD MOUSE · Post by **LOUD MOUSE** » Mon Oct 25, 2010 8:38 am

Yep!. ...........lm
#18 is installed already.
#14A holds 18 to the TC then ya make a sandwich of the other parts. ........lm

big-b wrote:Do you mean 14A holds 8 on and then the sandwich?

8 slides on then 14A is threaded in holding 8 in place?

big-b · Post by **big-b** » Mon Oct 25, 2010 8:46 am

Thanks LM. Part #10 is what i'm missing you don't have a spare lying around do you?

Brian

LOUD MOUSE · Post by **LOUD MOUSE** » Mon Oct 25, 2010 9:33 am

I do.
PM me. ............lm

big-b wrote:Thanks LM. Part #10 is what i'm missing you don't have a spare lying around do you?

Brian

e3steve · Post by **e3steve** » Mon Oct 25, 2010 12:34 pm

I slackened mine off and pictured it FYI, big-b.
