CL77 late model seat mount

Richard305 · Post by **Richard305** » Thu Jul 14, 2016 4:19 am

I have a late model CL77. I don't know what is missing from the front of the seat. Is there a rubber piece missing? Just metal seat pan kind of hooks loosely under a square box on the frame.

LOUD MOUSE · Post by **LOUD MOUSE** » Thu Jul 14, 2016 6:23 am

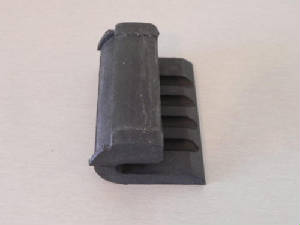

A molded rubber sort of sleeve fits the seat/frame. ..........lm

Richard305 wrote:I have a late model CL77. I don't know what is missing from the front of the seat. Is there a rubber piece missing? Just metal seat pan kind of hooks loosely under a square box on the frame.

Seadog · Post by **Seadog** » Thu Jul 14, 2016 8:08 am

Honda part #77101-273-300P

Although you might find it elsewhere for less $, you can find a new reproduction part here: http://www.claussstudios.com/id45.html

LOUD MOUSE wrote:A molded rubber sort of sleeve fits the seat/frame. ..........lm

Richard305 wrote:I have a late model CL77. I don't know what is missing from the front of the seat. Is there a rubber piece missing? Just metal seat pan kind of hooks loosely under a square box on the frame.

Richard305 · Post by **Richard305** » Thu Jul 14, 2016 5:59 pm

Thanks for your help. Photo, part no. and source. Very helpful.
