Kickstart lever arm issues

nevernotbusy · Post by **nevernotbusy** » Wed May 14, 2014 7:26 pm

Thanks LoudMouse,

I'll try and locate procedure for indexing. Got any resources?

thanks
L

LOUD MOUSE · Post by **LOUD MOUSE** » Wed May 14, 2014 7:32 pm

Take the cover off and move the lever.
Install the cover. ......lm

nevernotbusy wrote:Thanks LoudMouse,

I'll try and locate procedure for indexing. Got any resources?

thanks
L

nevernotbusy · Post by **nevernotbusy** » Wed May 14, 2014 8:26 pm

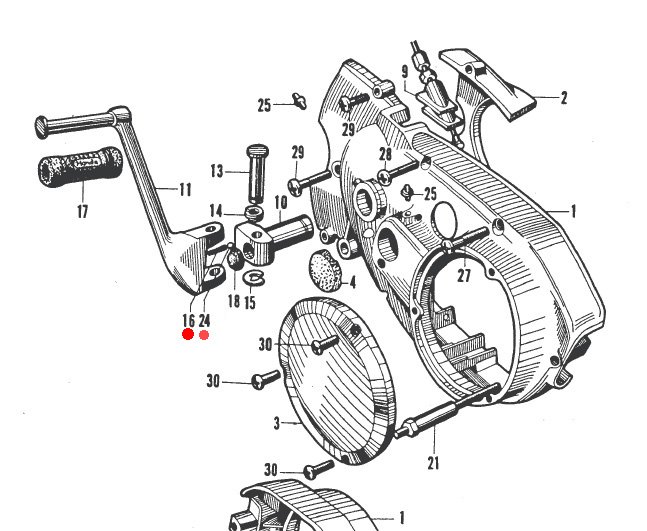

I gotta pull out the kickstarter joint (10) too though, I'm assuming. Won't that make the spring in there pop all over the place?

Hoosier Tom · Post by **Hoosier Tom** » Wed May 14, 2014 9:33 pm

nevernotbusy wrote:I gotta pull out the kickstarter joint (10) too though, I'm assuming

No. After your exhaust and foot peg are out of your way remove the sidecover screws and pull the kick cover straight off. It helps if you hold the kick arm and rotate it a little towards the rear as you pull the whole thing off. Make sure your kick start shaft is rotated forward to its stop before re-indexing your kicker to 11 o'clock and sliding the cover back on. It may take you a few times to get it right but it is a quick and easy job.

HT

nevernotbusy · Post by **nevernotbusy** » Thu May 15, 2014 8:08 am

Awesome, Thanks y'all
