Interesting Switch Phenomenon

casamere
honda305.com Member
Posts: 377
Joined: Tue Nov 04, 2014 4:47 pm
Location: yorkshire UK

Post by casamere » Tue Jun 20, 2017 2:42 am

I'm afraid that's as much help as I can offer as the guy who helped me restore my bike made me a new wiring harness. My knowledge of a wiring diagram is also very limited.
Hope you get it fixed.

User avatar
brewsky
honda305.com Member
Posts: 1816
Joined: Wed Jul 23, 2008 5:21 am
Location: Princeton, WV

Post by brewsky » Tue Jun 20, 2017 6:08 am

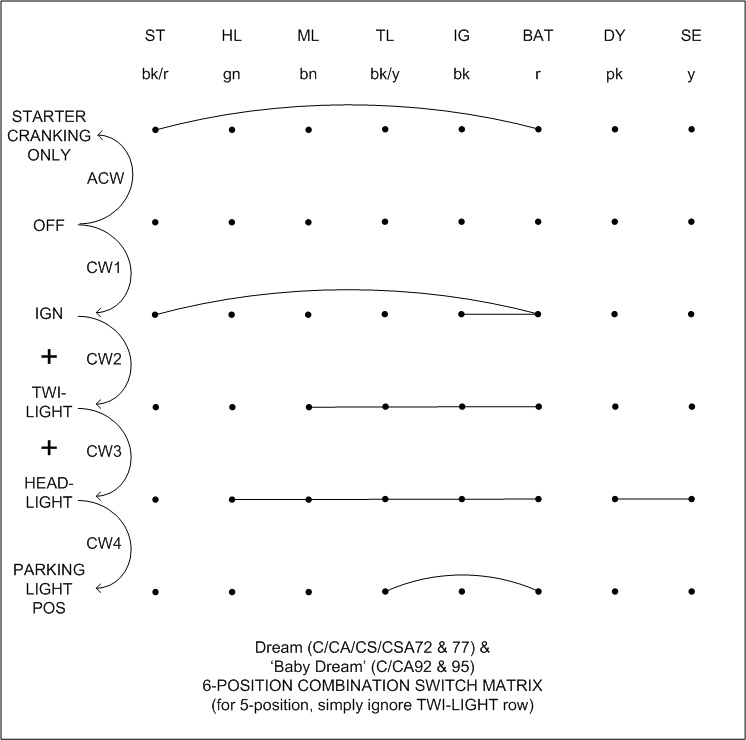

The switch matrix shown in the electrical section shows which wires connect to each other in each position of the switch.

The header of the matrix shows which color wire attaches to the corresponding terminal of the switch.

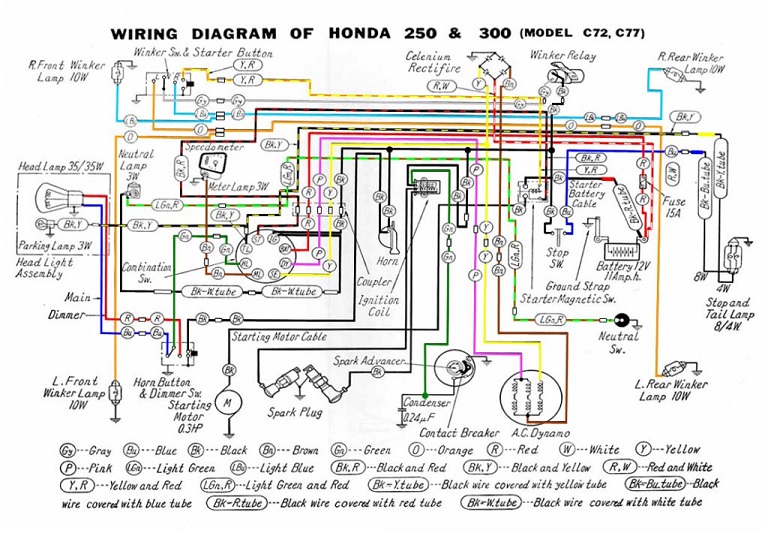

The color wiring diagram allows you to see where each wire connects thru the harness,
Attachments
C_CA Dream combi switch matrix.jpg
C_CA Dream combi switch matrix.jpg (70.56 KiB) Viewed 1216 times

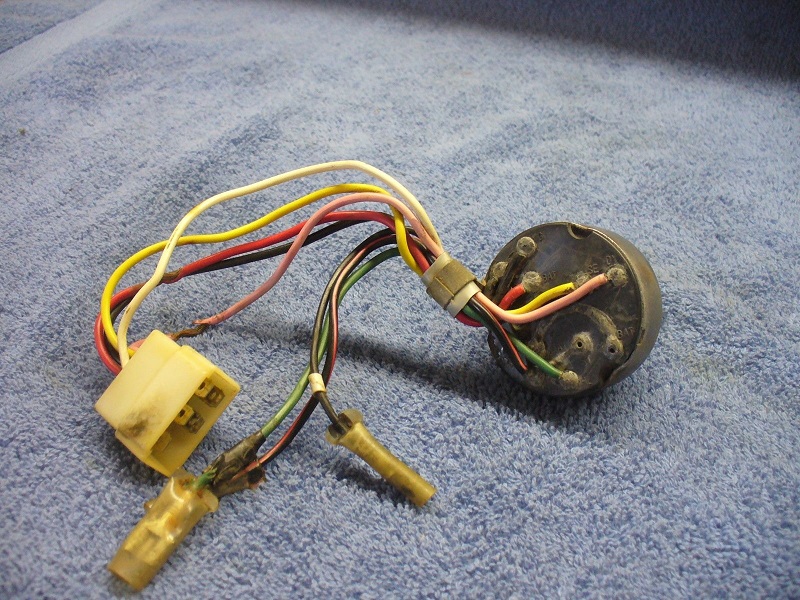

ignition switch1.jpg
ignition switch1.jpg (244.69 KiB) Viewed 1216 times
C CA 72 77 Wiring diag in colour1.jpg
C CA 72 77 Wiring diag in colour1.jpg (176.44 KiB) Viewed 1216 times
66 dream, 78 cb750k, 02fz1, 09 wing

Dr. Frankenstein
honda305.com Member
Posts: 568
Joined: Tue Feb 02, 2010 7:11 pm
Location: Charlottesville, VA

Post by Dr. Frankenstein » Sun Jun 25, 2017 9:34 am

Hi brewsky - can you be a little more specific? It would help me greatly if I knew exactly what and where to test, and what I should see.

For instance, that big male plug off the key switch plugs into the main wiring harness, which in turn branches off and goes into the stator and the coil, solenoid etc.

I assume all testing is done with the switch on so I have power in the system, but what wires do I test and where for each of the five settings?

For instance, to test the Ignition position (#3), I would put the voltmeter on the Black/Red wire, and test between the Black and Red wires, yes...? And I should get at least 12.5 volts at each wire....? Or....??? Or am I just testing for continuity?


I will of course be trying to figure this out in the meantime, but really specific instructions are much appreciated.

-John

User avatar
brewsky
honda305.com Member
Posts: 1816
Joined: Wed Jul 23, 2008 5:21 am
Location: Princeton, WV

Post by brewsky » Sun Jun 25, 2017 12:08 pm

I would start by disconnecting the ignition switch completely, and test each terminal to the others for continuity.

Terminals shown with a solid line between them in the switch matrix should show continuity with each other. None of the others should.
66 dream, 78 cb750k, 02fz1, 09 wing
