Tytronic electronic ignition help?

Charging System, Wiring, Lighting
Post Reply
User avatar
David M. Lyon
honda305.com Member
Posts: 15
Joined: Wed Dec 28, 2016 8:11 am
Location: Hattiesburg MS 39401

TYTRONIC installation on CB/CL 72/77

Post by David M. Lyon » Sun Aug 27, 2017 8:01 am

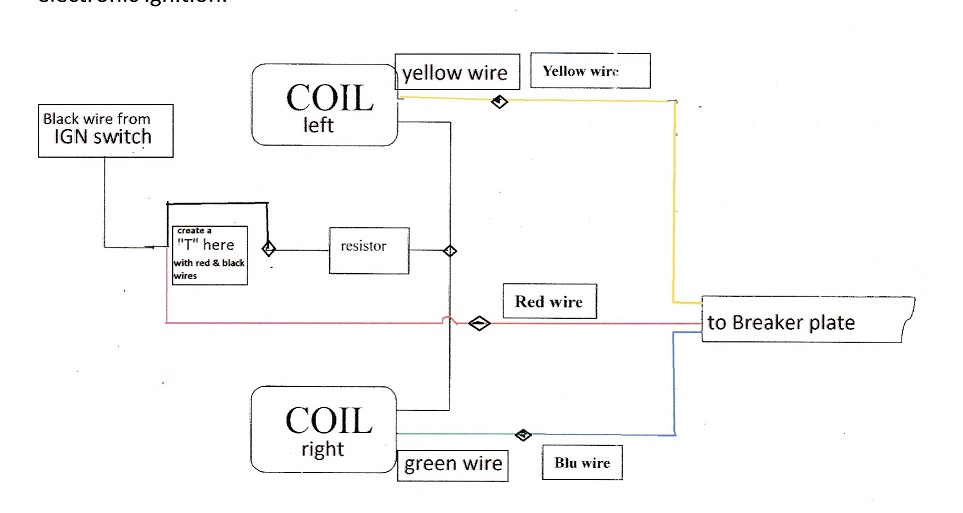

I have a short video on YouTube of how to install the TYTRONIC ignition kit. The original instructions are impossible to follow so I made a set of instructions that might help you and a wiring diagram.
https://youtu.be/yKPwMUnbRU8
Attachments
Tytronic wiring.jpg
Tytronic wiring.jpg (65.13 KiB) Viewed 3442 times
Top
Dr. Frankenstein
honda305.com Member
Posts: 568
Joined: Tue Feb 02, 2010 7:11 pm
Location: Charlottesville, VA

Post by Dr. Frankenstein » Sun Aug 27, 2017 8:25 am

Dave, you Rock, man! :)

I will try this soonest and let you know how it goes; thanks!
Top
User avatar
Tim Allman
honda305.com Member
Posts: 498
Joined: Tue Dec 02, 2014 9:25 am
Location: Guelph, Ontario, Canada

Post by Tim Allman » Sun Aug 27, 2017 9:15 am

From the Tytronics web site:
- Quick and simple installation that is easier than installing a set of points!
- the best, simplest, and most complete installation instructions in the industry.
It's amazing how much marketing can change one's perspective.
Top
User avatar
David M. Lyon
honda305.com Member
Posts: 15
Joined: Wed Dec 28, 2016 8:11 am
Location: Hattiesburg MS 39401

Post by David M. Lyon » Sun Aug 27, 2017 9:47 am

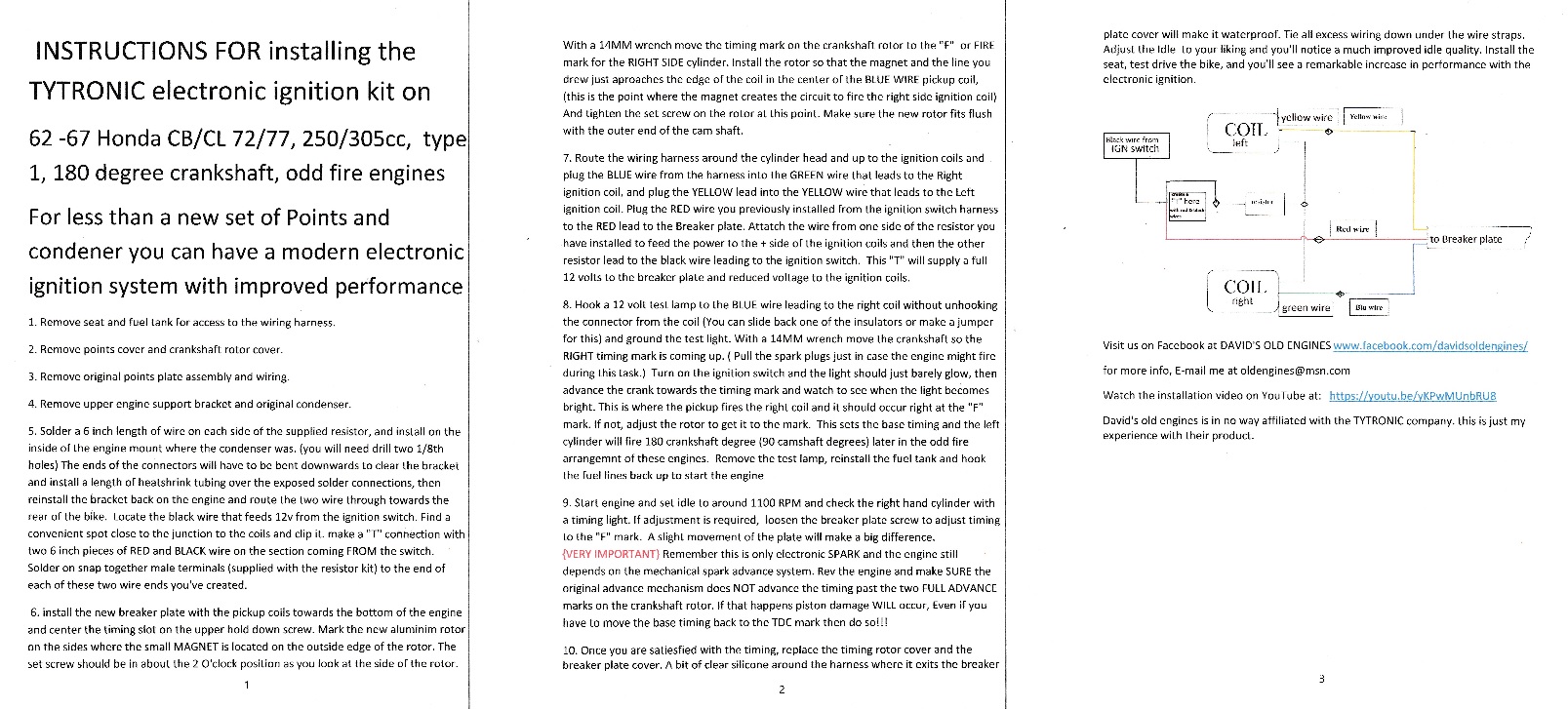

Here are the instructions I revised to install the TYTRONIC ignition kit.
Attachments
Installation instructions combined.jpg
Installation instructions combined.jpg (417.8 KiB) Viewed 3434 times
Top
User avatar
Tim Allman
honda305.com Member
Posts: 498
Joined: Tue Dec 02, 2014 9:25 am
Location: Guelph, Ontario, Canada

Post by Tim Allman » Mon Aug 28, 2017 8:58 am

Yikes!
Top
User avatar
David M. Lyon
honda305.com Member
Posts: 15
Joined: Wed Dec 28, 2016 8:11 am
Location: Hattiesburg MS 39401

Post by David M. Lyon » Mon Aug 28, 2017 6:02 pm

Is this posted in the wrong forum? should it be in the electronic ignition upgrade post???
Top
jdmachinist
honda305.com Member
Posts: 1
Joined: Fri Jun 01, 2018 11:37 am

Tytronic Electronic Ignition problems

Post by jdmachinist » Sat Jul 21, 2018 5:21 pm

David M. Lyon wrote:Here are the instructions I revised to install the TYTRONIC ignition kit.
Thank you for posting these instructions!

I installed a Tytronic Electronic Ignition on my 1965 CA77.... used the instructions supplied, not good but would get someone in the right direction.... i also used these which was a lot easier to understand.

After mounting and wiring everything up, it did not work :-(

Using a Test light to set timing, the light stays on the whole time. I was wondering if that was just a fluke, so i spun the motor and no spark at all.

Just messaged "Old_Honda" on Ebay. Going back to points for now so i can ride when the rain stops.

It is frustrating that i had to wait 2 weeks to get this from China then it was a bad one.

hopefully better luck next time.
Top
Post Reply

Return to “Electrical - Wiring”
