1964 Superhawk Project

LOUD MOUSE · Post by **LOUD MOUSE** » Tue May 24, 2016 8:04 am

Ya got me curious.
Where did you contact the wires?. ..............lm

Seadog wrote:I had a old Kisan volt/amp meter lying around and decided to temporarily install it to keep an eye on the new R/R's performance. I'll remove it ASAP.

Seadog · Post by **Seadog** » Tue May 24, 2016 8:53 am

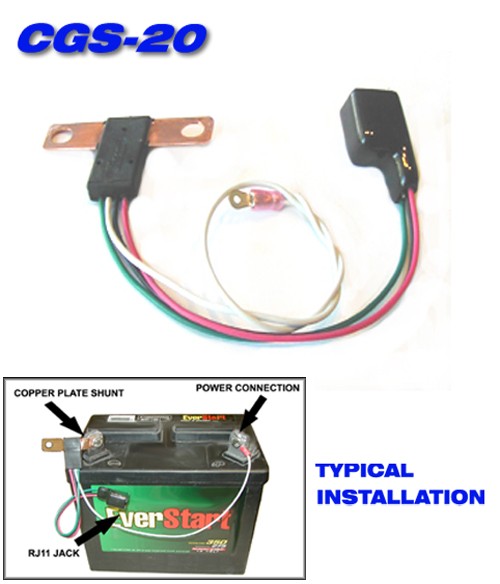

Kisan's Charge Guard uses a current detector that is connected to battery negative and all other negative connections are made downstream of it. It also has a battery positive connection to power it. An RJ-11 jack connects the detector to the meter.

LOUD MOUSE wrote:Ya got me curious.
Where did you contact the wires?. ..............lm

LOUD MOUSE · Post by **LOUD MOUSE** » Tue May 24, 2016 9:49 am

I like that connection.
Where could I get one?. .................lm

Seadog wrote:Kisan's Charge Guard uses a current detector that is connected to battery negative and all other negative connections are made downstream of it. It also has a battery positive connection to power it. An RJ-11 jack connects the detector to the meter.

LOUD MOUSE wrote:Ya got me curious.
Where did you contact the wires?. ..............lm

Seadog · Post by **Seadog** » Tue May 24, 2016 10:05 am

https://kisantech.com/mag/chargeguard/cg-25.html

LOUD MOUSE wrote:I like that connection.
Where could I get one?. .................lm

LOUD MOUSE · Post by **LOUD MOUSE** » Tue May 24, 2016 10:49 am

Thanks.
I'll collect the monies from parts sales and get one.
Looks like a really easy test of the charge system. ..................lm

Seadog wrote:https://kisantech.com/mag/chargeguard/cg-25.html

LOUD MOUSE wrote:I like that connection.
Where could I get one?. .................lm

G-Man · Post by **G-Man** » Tue May 24, 2016 11:35 am

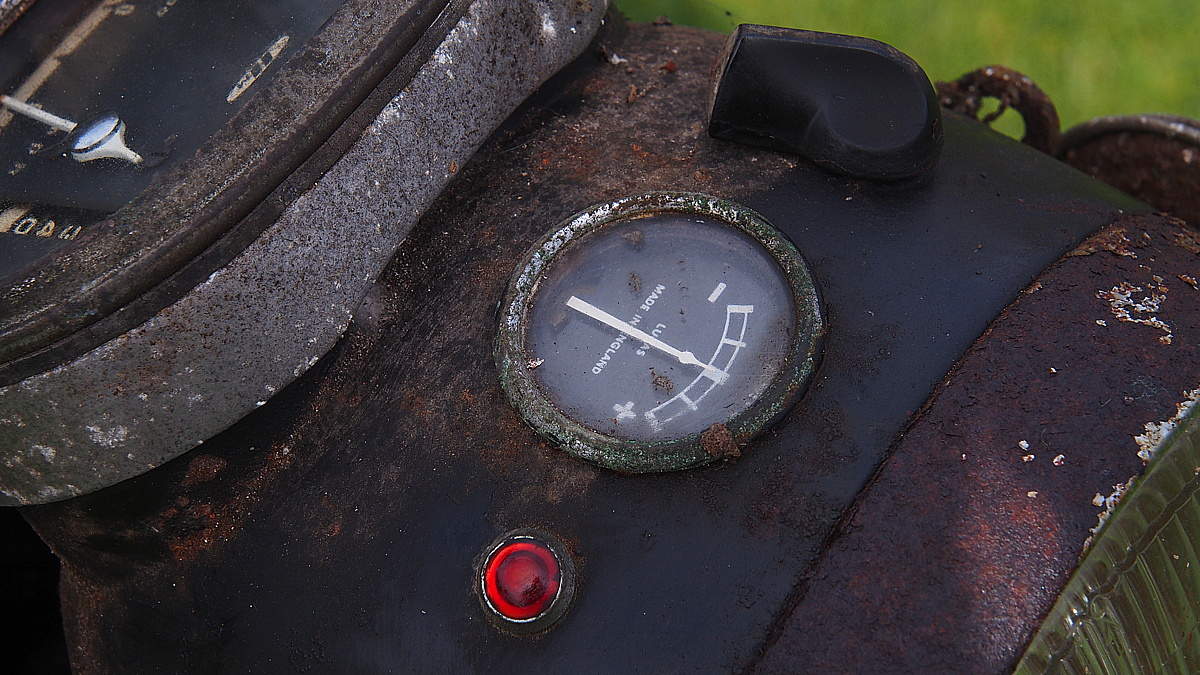

I like the look of that. On my 1961 CB72 someone had neatly grafted a Lucas ammeter into the headlamp for a similar purpose.

G

Seadog wrote:https://kisantech.com/mag/chargeguard/cg-25.html

LOUD MOUSE wrote:I like that connection.
Where could I get one?. .................lm

Seadog · Post by **Seadog** » Tue May 24, 2016 11:57 am

Happy to help. I'd help with parts sales too, if you have a good right side muffler....

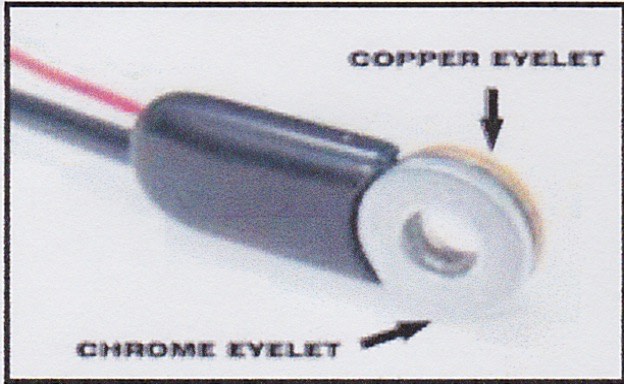

I was just looking at the on-line manual for the ChargeGuard and see that they've improved the current sensor. It no longer has the copper tabs. I think that's a good thing.

LOUD MOUSE wrote:Thanks.
I'll collect the monies from parts sales and get one.
Looks like a really easy test of the charge system. ..................lm
