When that bushing wore down..........lots of things were not aligned. Your motor looks to have been abused.........and abused again. Check the internal cogs on the gears. How much sludge was in the oil-slinger? Good time to clean the crankshaft oil journals. Sometimes some air-pressure will do the job.
LM and others will set you straight.
honda305.com Forum
Vintage Honda Owners, Restorers, Riders and Admirers
NEW 1967 CB77 OWNER
-
OldScrambler
- honda305.com Member
- Posts: 283
- Joined: Sat Feb 07, 2015 1:49 pm
- Location: Wisconsin, USA
-
zads
- honda305.com Member
- Posts: 37
- Joined: Mon May 12, 2014 11:24 pm
- Location: Winnipeg, Manitoba, Canada
I took apart all the parts of the transmission and know how the kickstart prawl and spring ended up in the oil filter. The bushing (part number 28258-259-010) was critically damaged. There is also a little damage to the spindle (part number 28250-259-000), based on the picture below is the spindle still usable? I did not find the pin (part number 28256-250-000) that goes under the kickstart prawl, so I'll be on the look out for that.It also looks like I'll need to replace the sprocket.

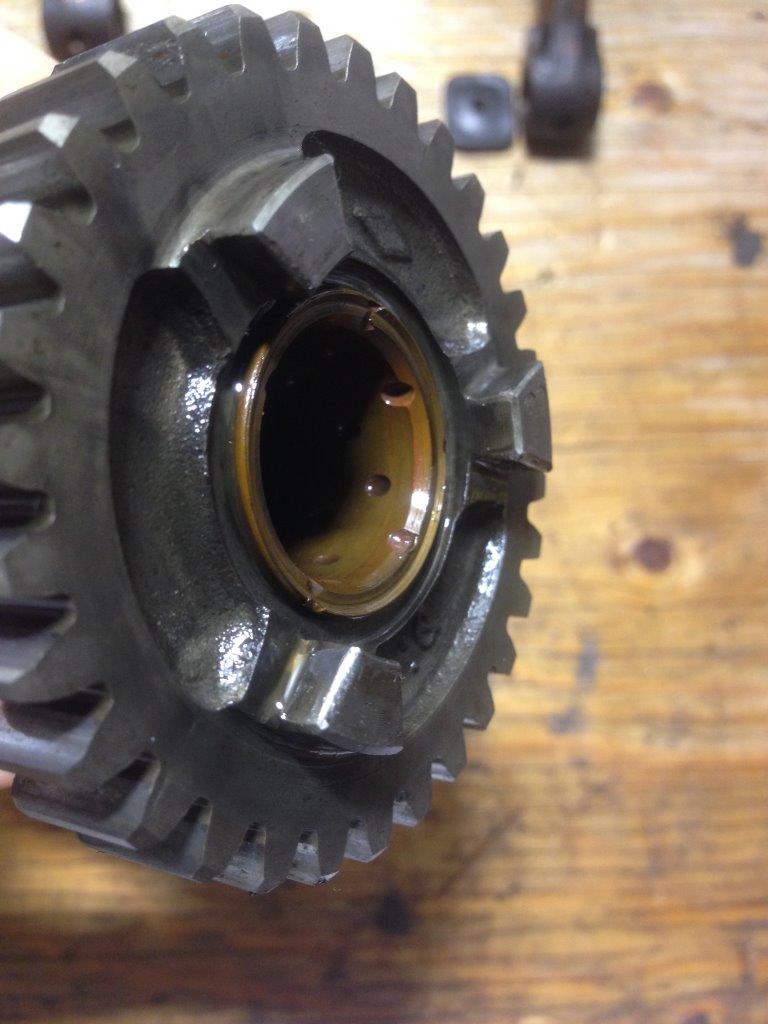

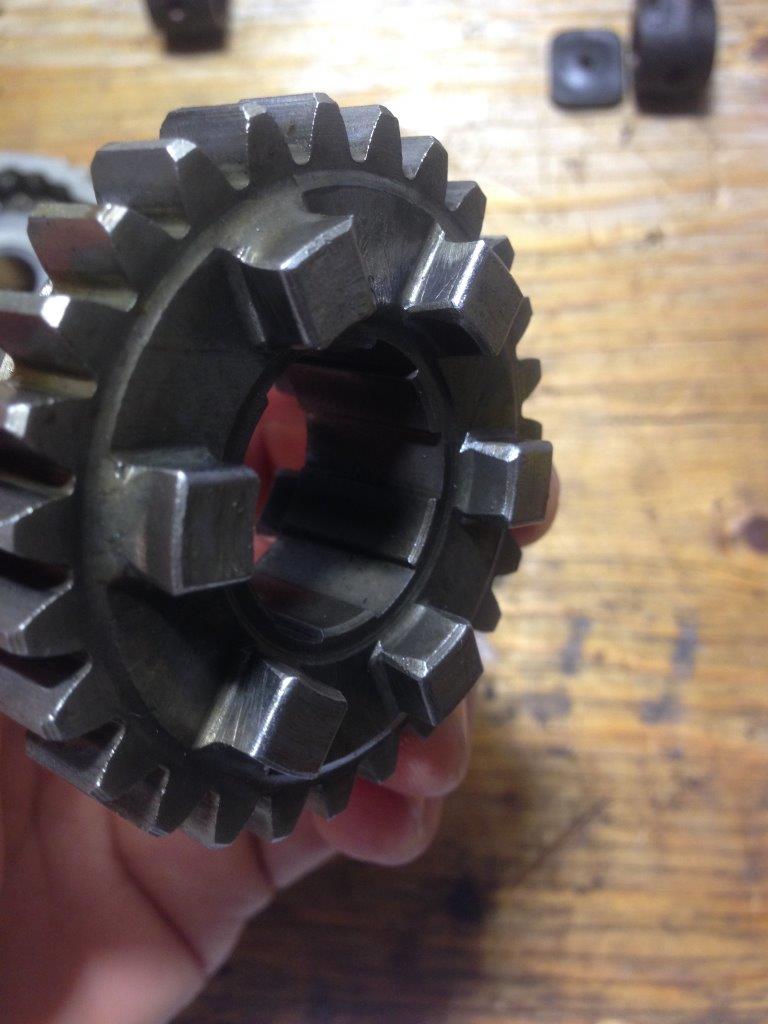

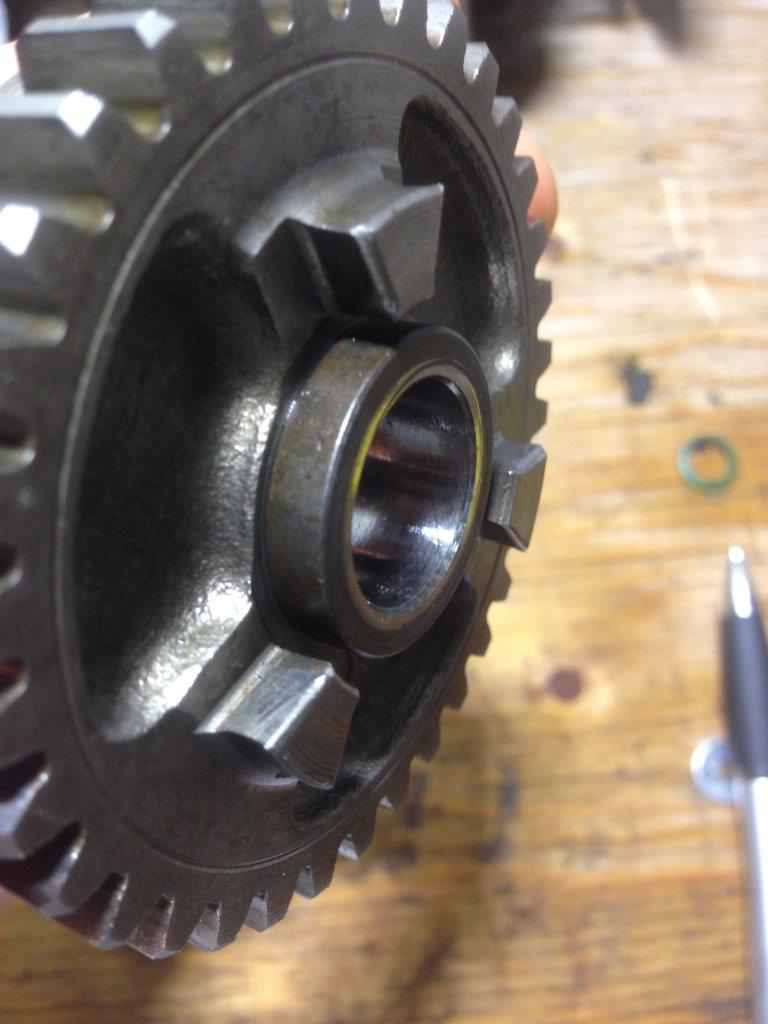

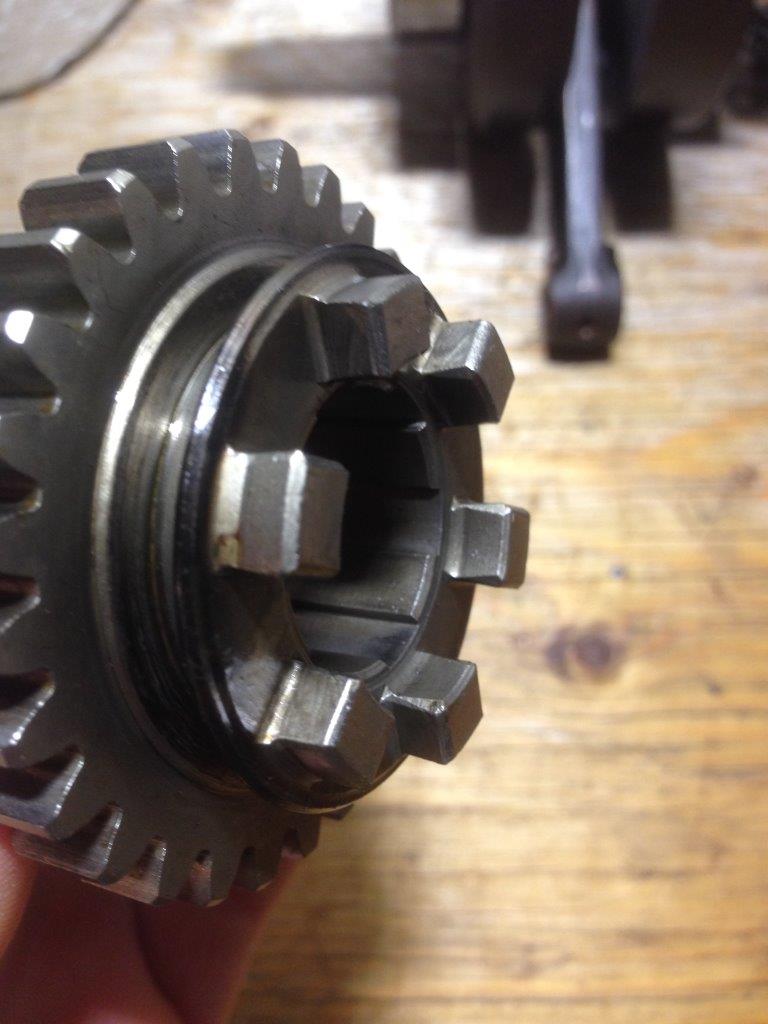

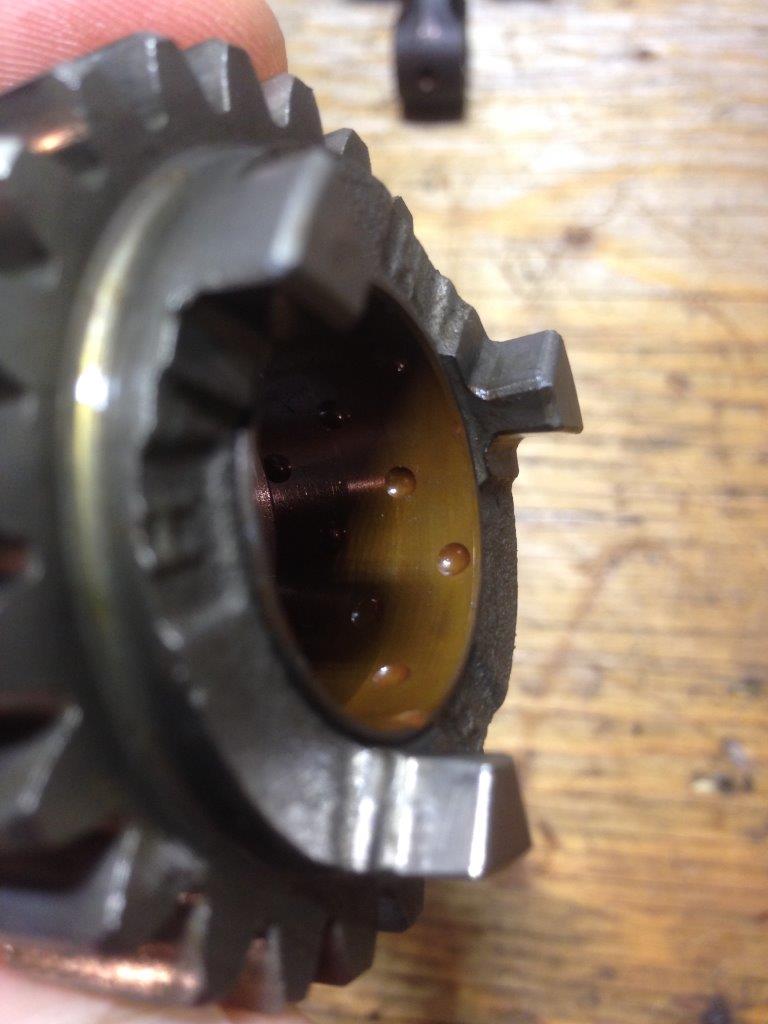

Based on the pictures below does it look like I need to replace the dogs?
Still moving forward on this project!
Based on the pictures below does it look like I need to replace the dogs?
Still moving forward on this project!
- Attachments
-

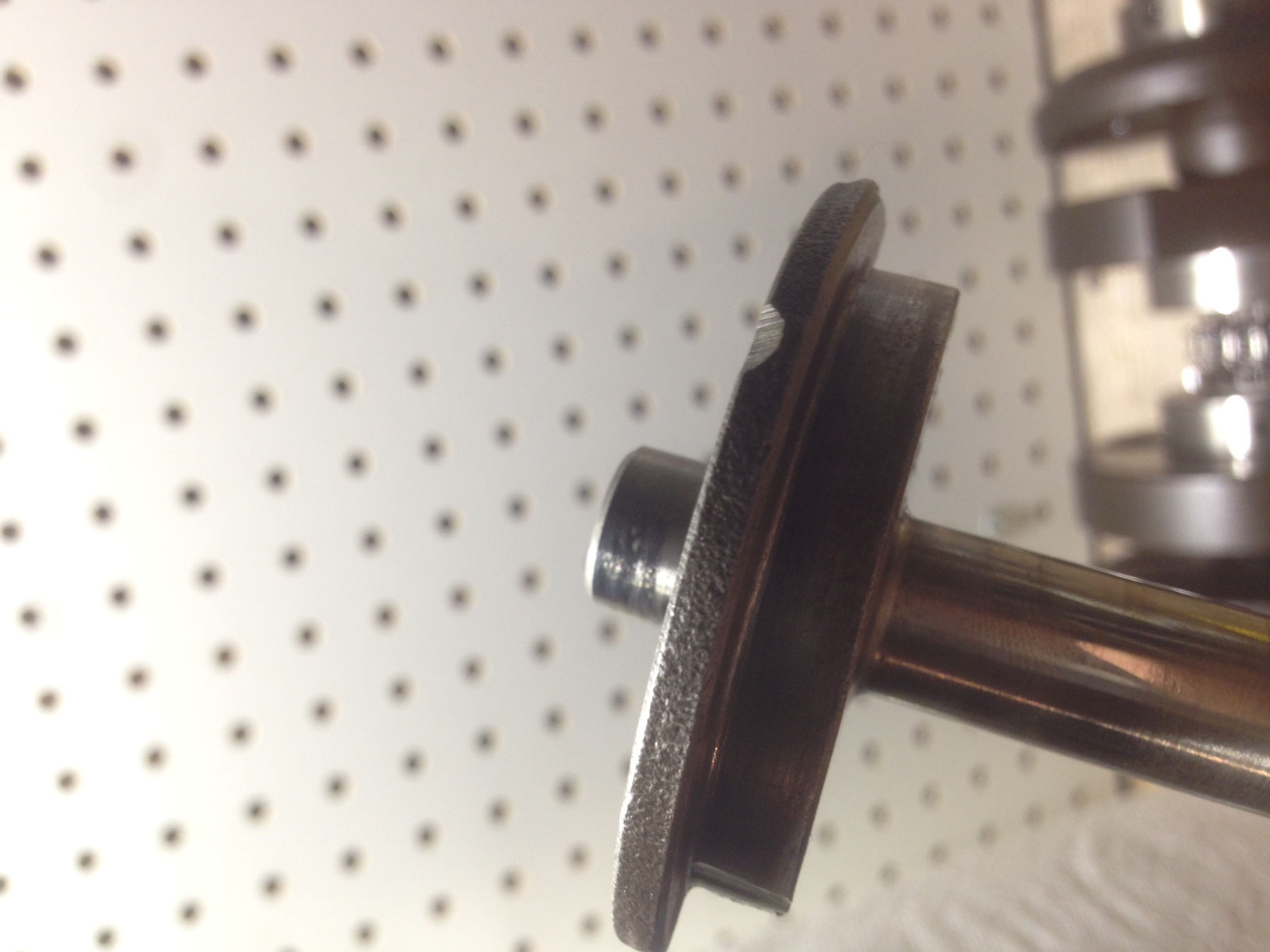

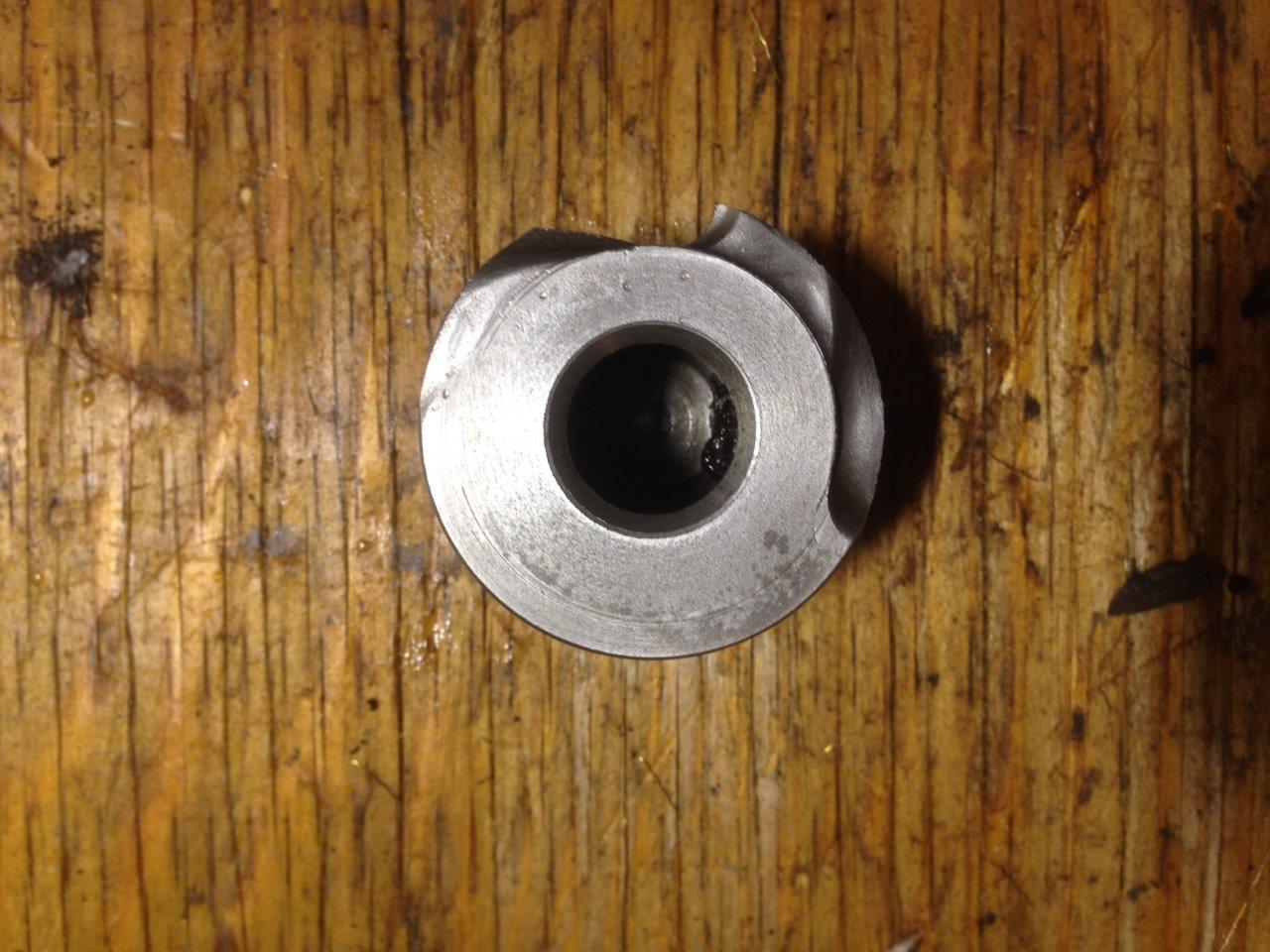

- bushing critically damaged
- IMG_5264.jpg (156.09 KiB) Viewed 3068 times
-
- bushing - critically damaged
- IMG_5265.jpg (164.26 KiB) Viewed 3068 times
-

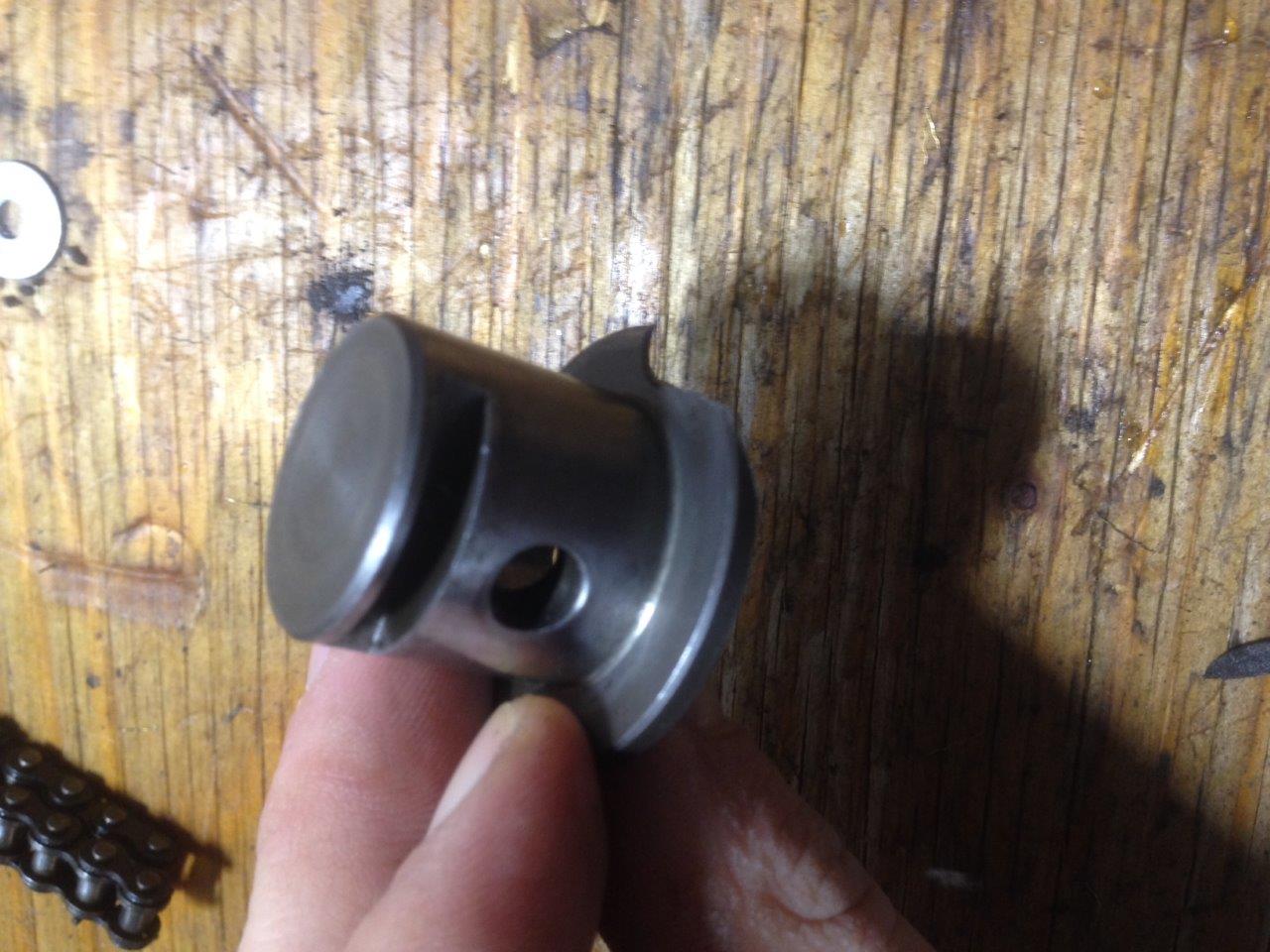

- spindle end - damage at end
- IMG_5263.JPG (341.38 KiB) Viewed 3068 times
-

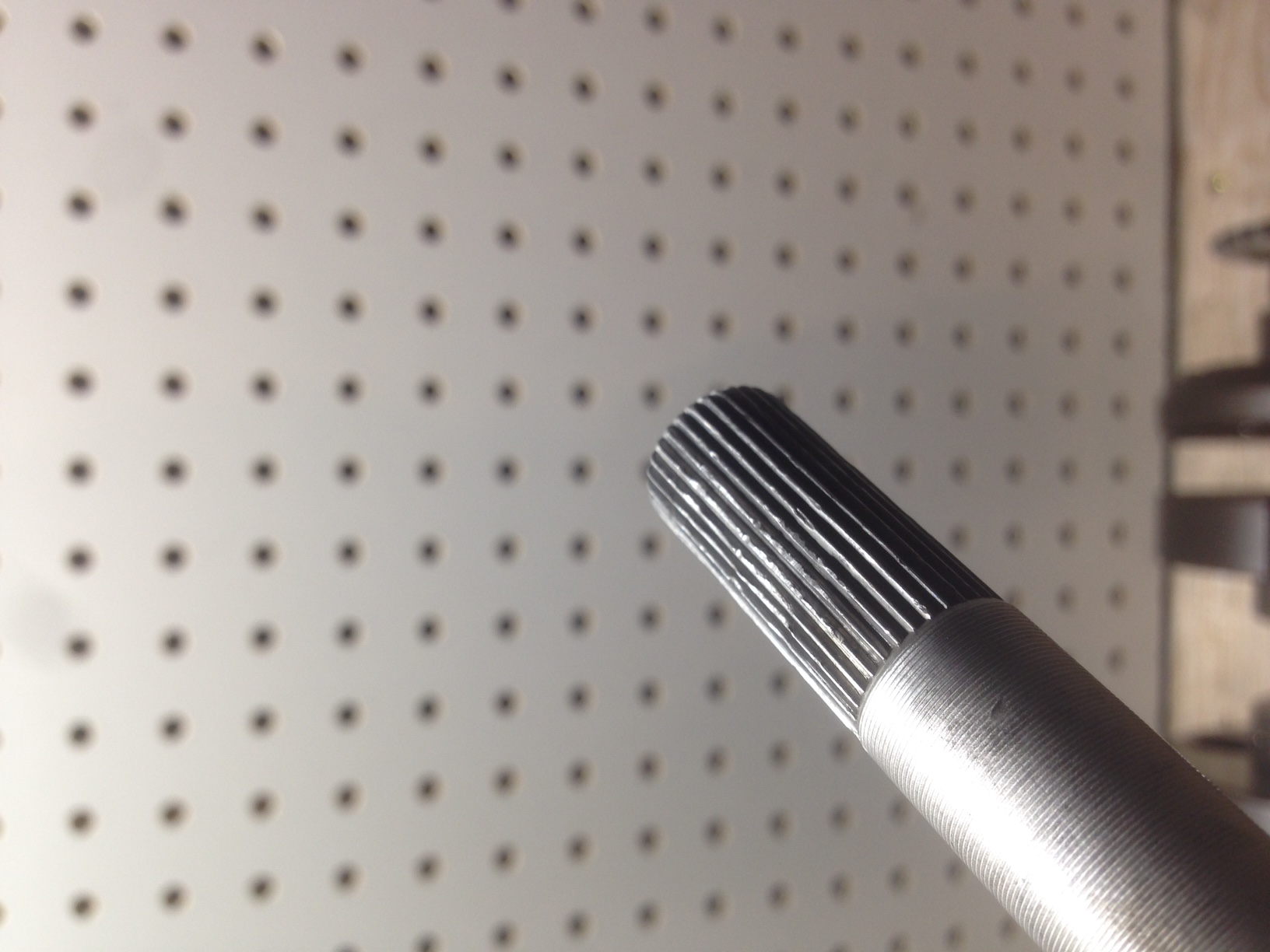

- splines on spindle
- IMG_5262.JPG (369.1 KiB) Viewed 3068 times
Last edited by zads on Fri Feb 19, 2016 5:25 pm, edited 1 time in total.
-
LOUD MOUSE
- honda305.com Member
- Posts: 7817
- Joined: Mon Aug 15, 2005 8:23 am
- Location: KERRVILLE, TEXAS
The shaft is good the cap is destroyed. ...................lm
OldScrambler wrote:When that bushing wore down..........lots of things were not aligned. Your motor looks to have been abused.........and abused again. Check the internal cogs on the gears. How much sludge was in the oil-slinger? Good time to clean the crankshaft oil journals. Sometimes some air-pressure will do the job.
LM and others will set you straight.
-
