Swap meet find- 67 Scrambler restore

Hoosier Tom · Post by **Hoosier Tom** » Sun Aug 20, 2017 8:15 pm

LOUD MOUSE wrote:What issue bike you talking about Stan?. ................lm

Ed,

I believe he's talking about his '67 candy scrambler.

HT

LOUD MOUSE · Post by **LOUD MOUSE** » Sun Aug 20, 2017 9:10 pm

Nice!. ...................lm

Hoosier Tom wrote:
LOUD MOUSE wrote:What issue bike you talking about Stan?. ................lm
Ed,

I believe he's talking about his '67 candy scrambler.

HT

OldStan · Post by **OldStan** » Mon Aug 21, 2017 2:20 pm

Hoosier Tom wrote:
LOUD MOUSE wrote:What issue bike you talking about Stan?. ................lm
Ed,

I believe he's talking about his '67 candy scrambler.

HT

Indeed I am. Hope to tear into it in the next few days and see what's needed.

OldStan · Post by **OldStan** » Tue Aug 22, 2017 4:09 pm

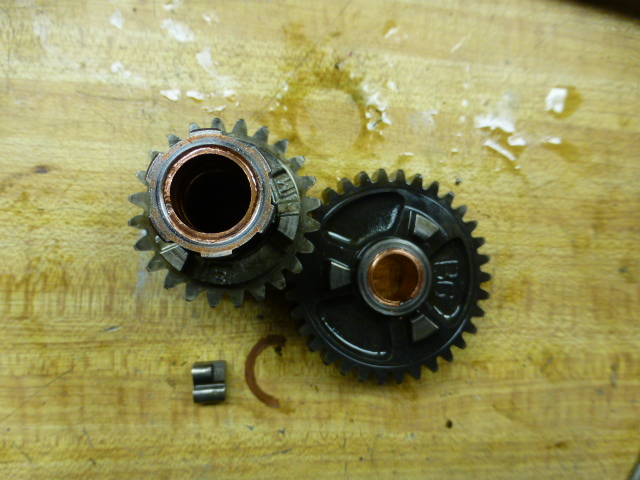

Got it torn apart. 14mm bushing came part and seized in the gears, detailed in my "bronze in filter" thread. Also causing my kick-start problem because 1st gear was so loose on the shaft.

Obviously the clutch is apart, nothing immediately noticeably except separators show signs of slipping, but I haven't really checked it out thoroughly. I will soon.

LOUD MOUSE · Post by **LOUD MOUSE** » Tue Aug 22, 2017 6:18 pm

Is the part of the bushing that is still in 1st gear the end with the taper in the hole or the flat end?. ..............lm

OldStan wrote:Got it torn apart. 14mm bushing came part and seized in the gears, detailed in my "bronze in filter" thread. Also causing my kick-start problem because 1st gear was so loose on the shaft.

Obviously the clutch is apart, nothing immediately noticeably except separators show signs of slipping, but I haven't really checked it out thoroughly. I will soon.

OldStan · Post by **OldStan** » Tue Aug 22, 2017 8:28 pm

Checked out the clutch, really couldn't find any major problem. I looked thru my spare parts, found friction plates (same design) that are about .003 Inch thicker each, so I'll use them. The springs are about 32.25 mm, should be 33 mm. I've got a set that are about 34 mm, the .115 inch diameter spring, so I'll try those. The clutch was original with around 15,000 miles on it.

OldStan · Post by **OldStan** » Wed Aug 23, 2017 11:22 am

I have 3 choices of kick-start shaft. I noticed that the spring holes are in different positions on each of them, but I don't think that is an issue.
Middle shaft is one that was in it, I had to modify the bushing slightly to accommodate the splined area on the end, which the other two shafts don't have.

What I am wondering about is the tip to the right of the slot. I'm guessing that is where the shaft hits the stop bolt in the resting position. Is the wear excessive where it would be a problem on either the one on the left or the one on the right? If so, has anyone tried building that area up with weld to save the shaft?
