First start with major oil leakage

OldScrambler · Post by **OldScrambler** » Tue Nov 10, 2015 2:20 pm

I see BIG pistons in the pics...........that will give you increased compression. I've had good success when starting a rebuilt motor to hold the throttle partly open for the first 30-seconds or more. It helps to set the rings. With a performance cam don't try to get the idle too low.........its hard on the valve-train.

Nice engine building ROOM.

LOUD MOUSE · Post by **LOUD MOUSE** » Tue Nov 10, 2015 2:36 pm

Maybe I'm missing the pic with the big pistons.
Pray tell which one, ONES is/are they. ..........lm

OldScrambler wrote:I see BIG pistons in the pics...........that will give you increased compression. I've had good success when starting a rebuilt motor to hold the throttle partly open for the first 30-seconds or more. It helps to set the rings. With a performance cam don't try to get the idle too low.........its hard on the valve-train.

Nice engine building ROOM.

apeonwheels · Post by **apeonwheels** » Wed Nov 11, 2015 10:04 am

The pistons are probably at the link I attached the other day. The pistons were just one size larger as far as I remember, I bought the complete assembly with the barrels on ebay. I don`t think that would make a difference.

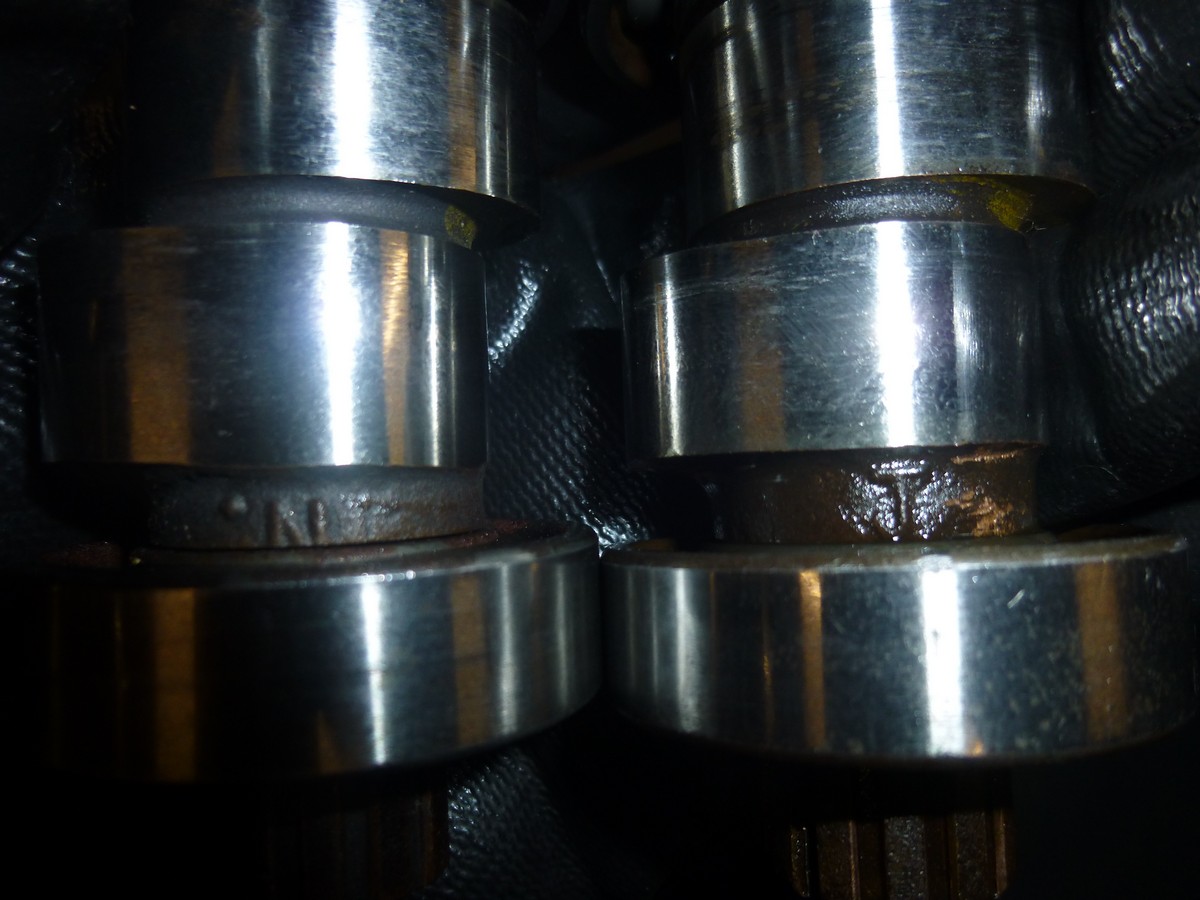

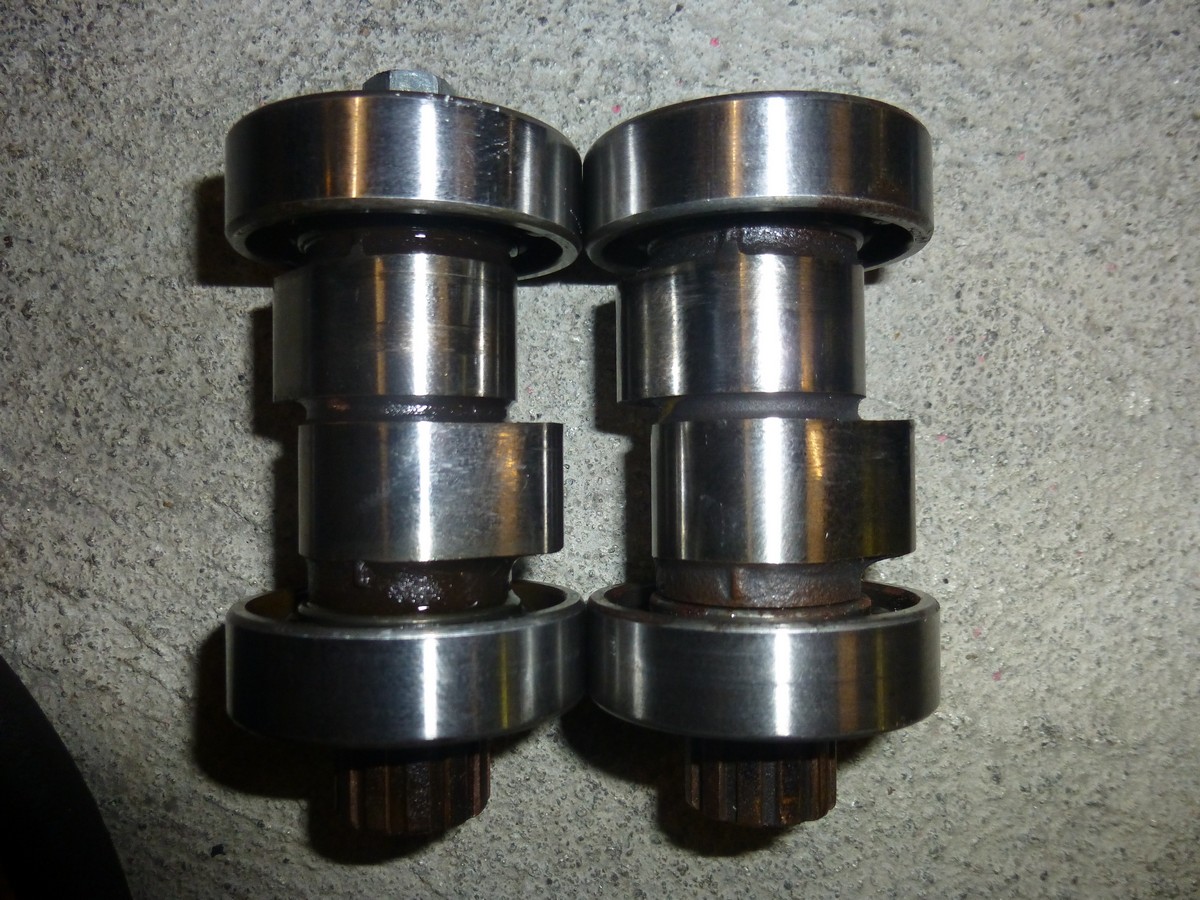

At the weekend I managed to take out one of the cams leving the engine intact and fix the leaking. For some reason the were not in the correct position when I assembled them together for the first time. I compared the left cam to another one that I have in stock and there was no difference. So either these are not race cams or both are. There are some letters on them too (l,m), any idea what these stand for?

apeonwheels · Post by **apeonwheels** » Wed Nov 11, 2015 10:07 am

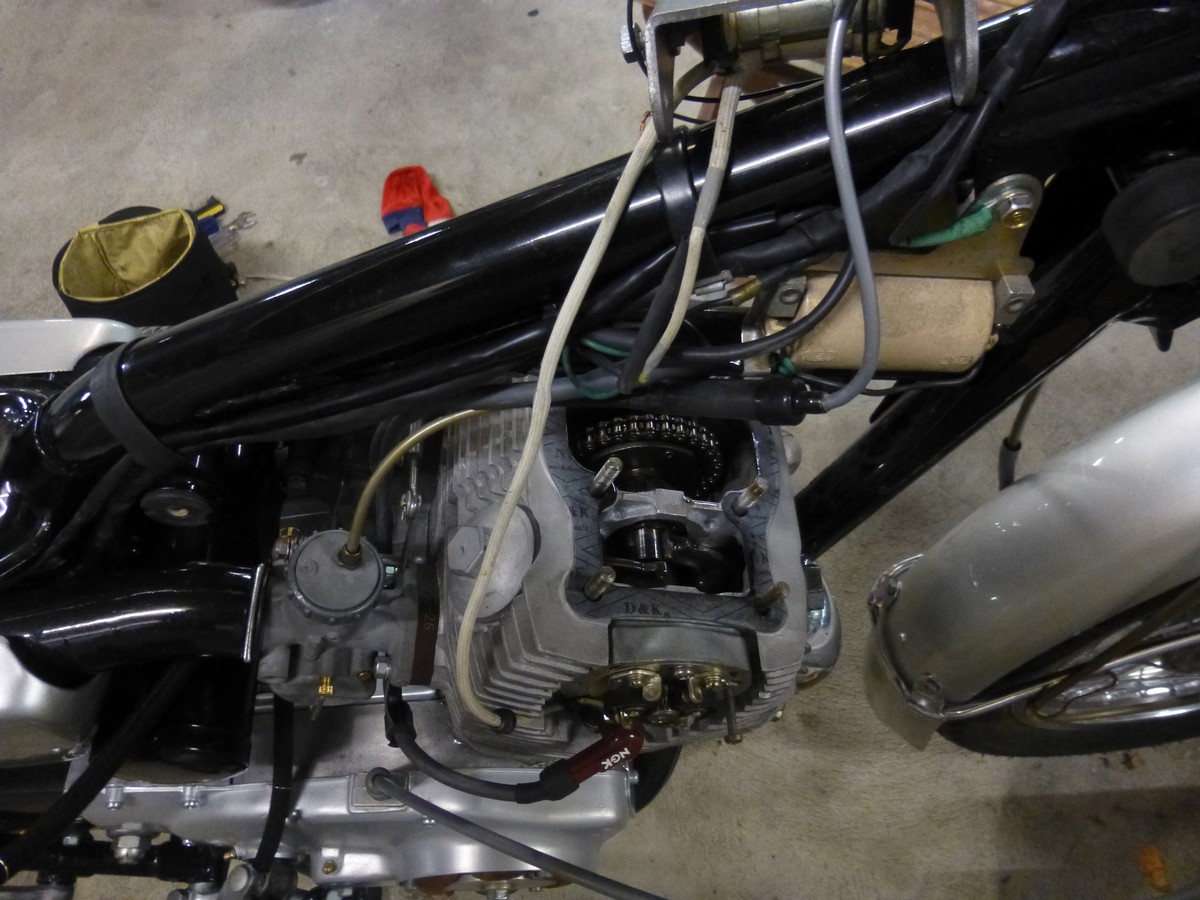

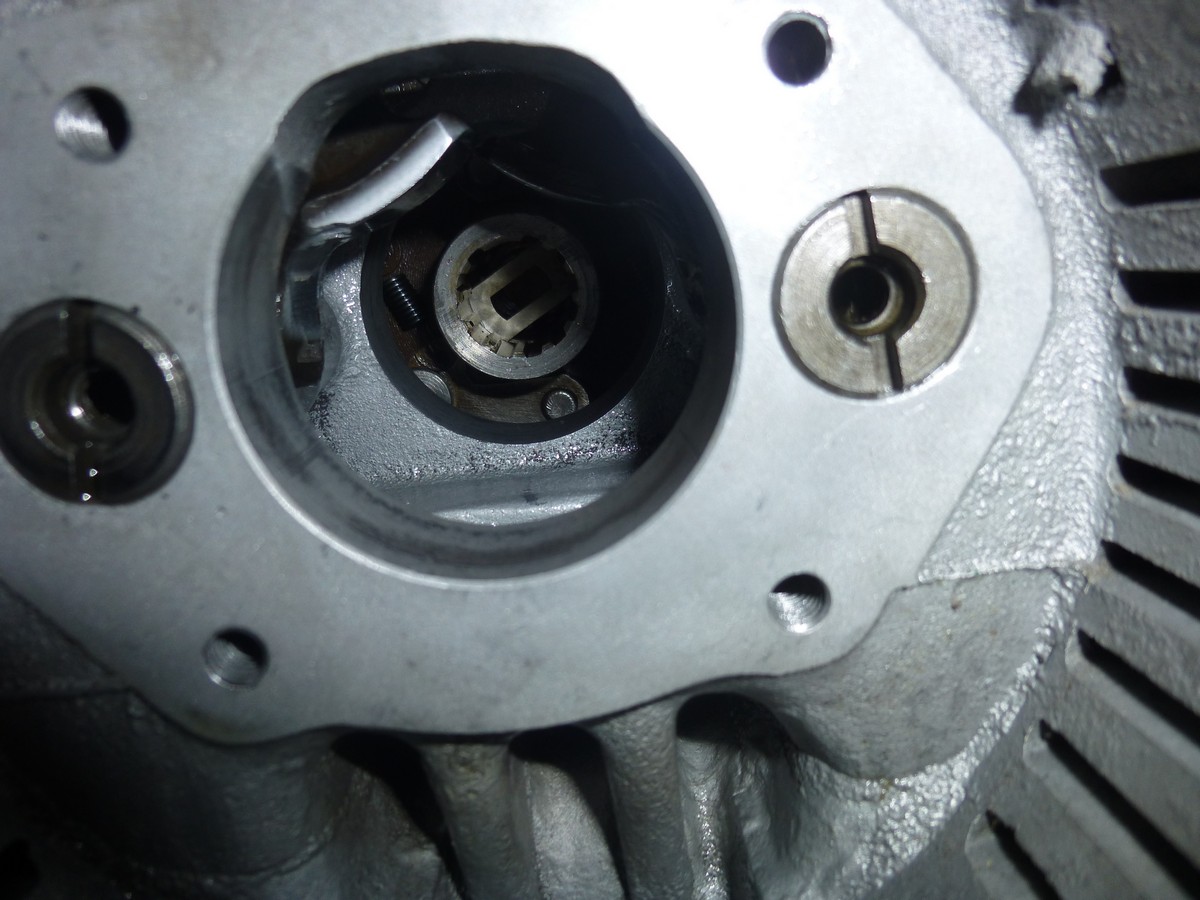

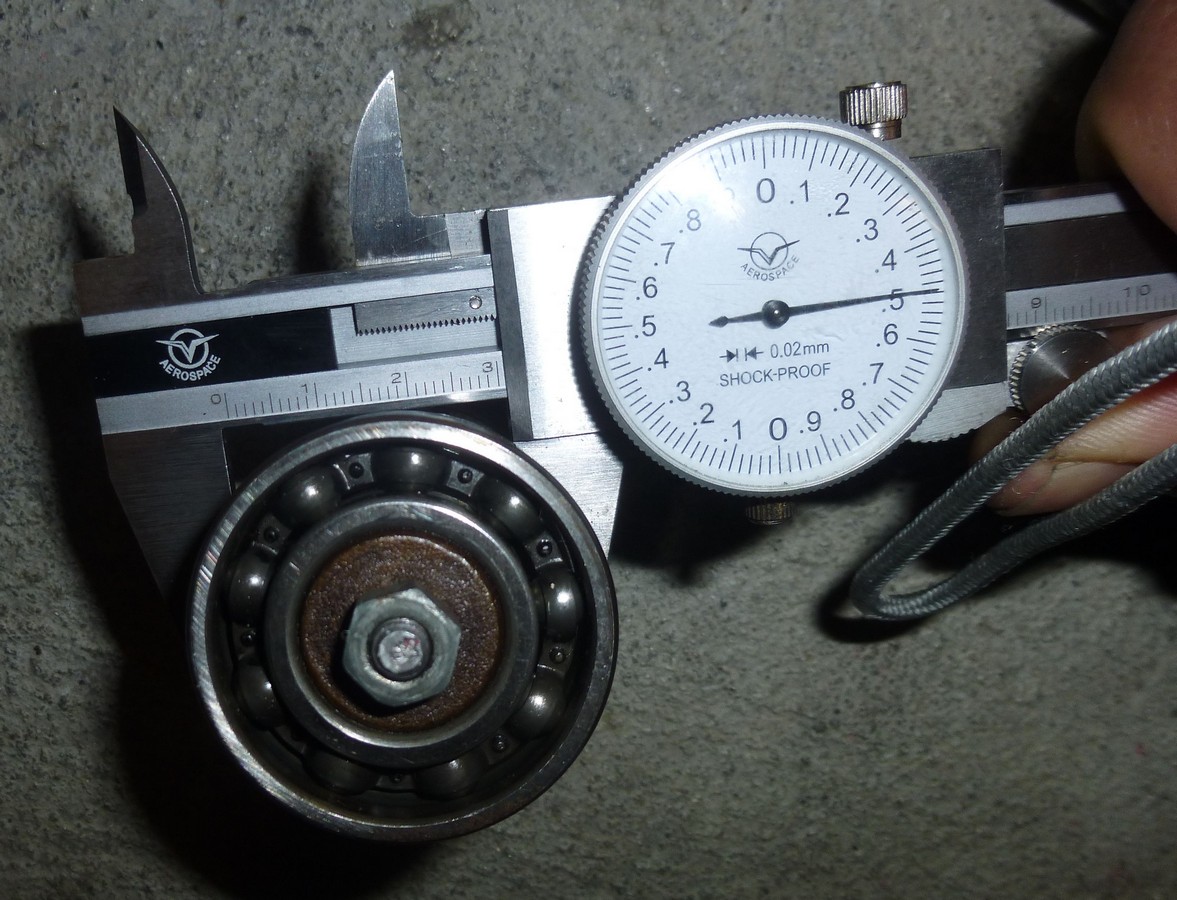

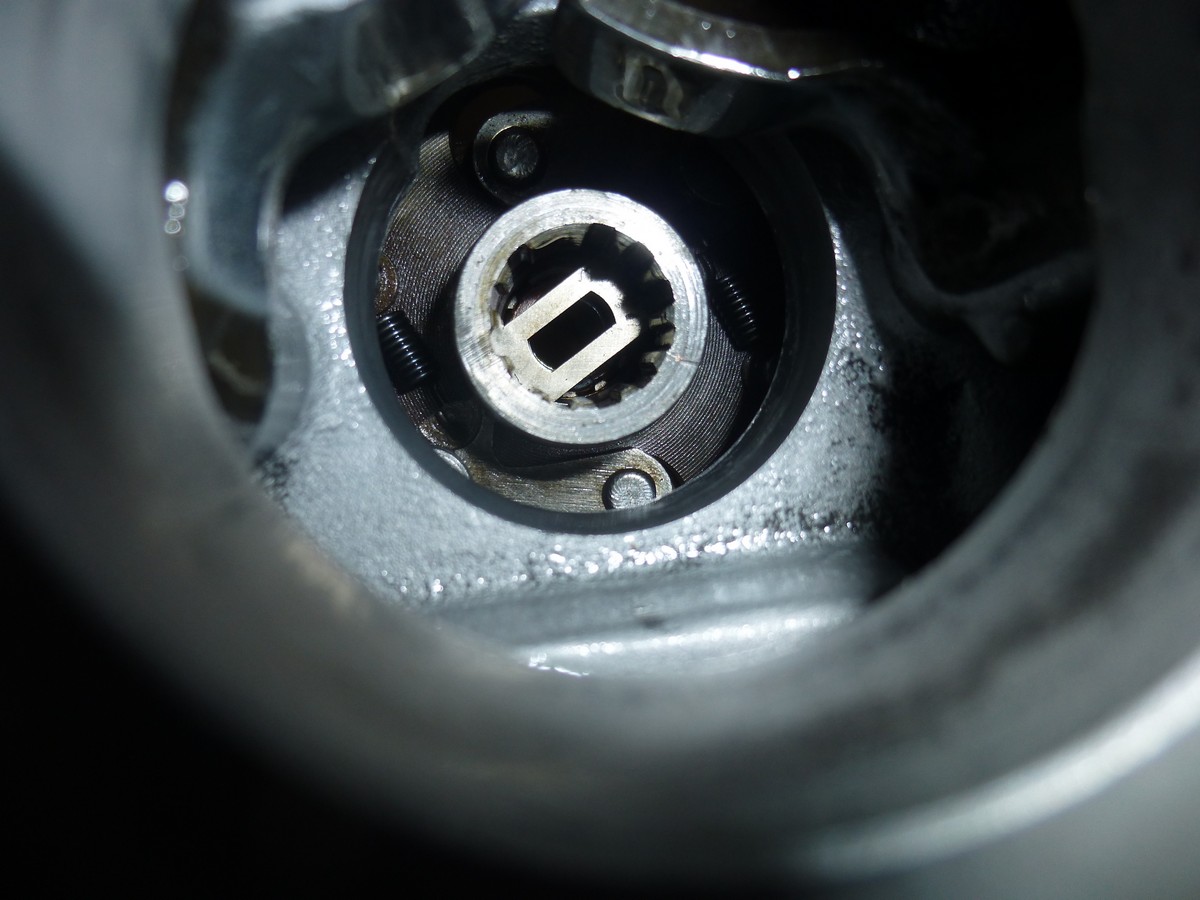

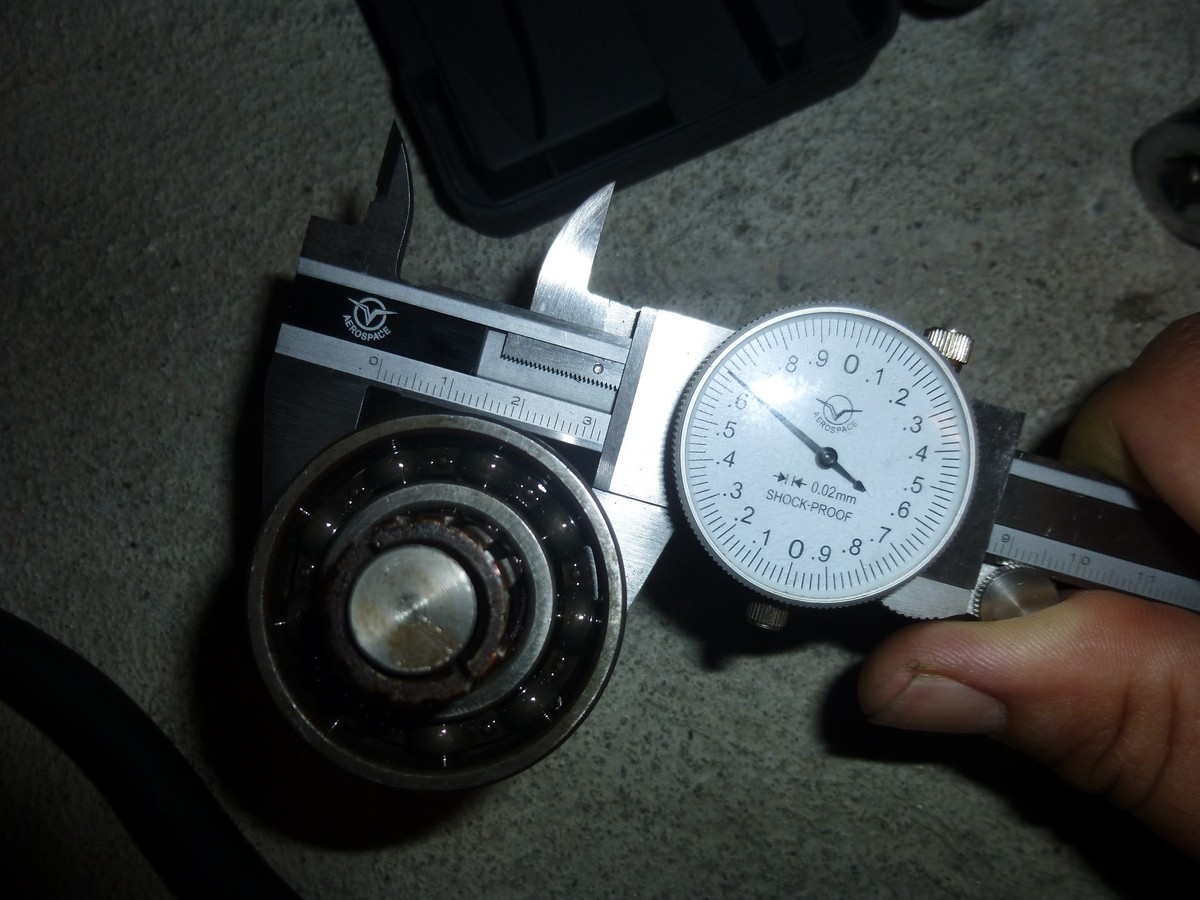

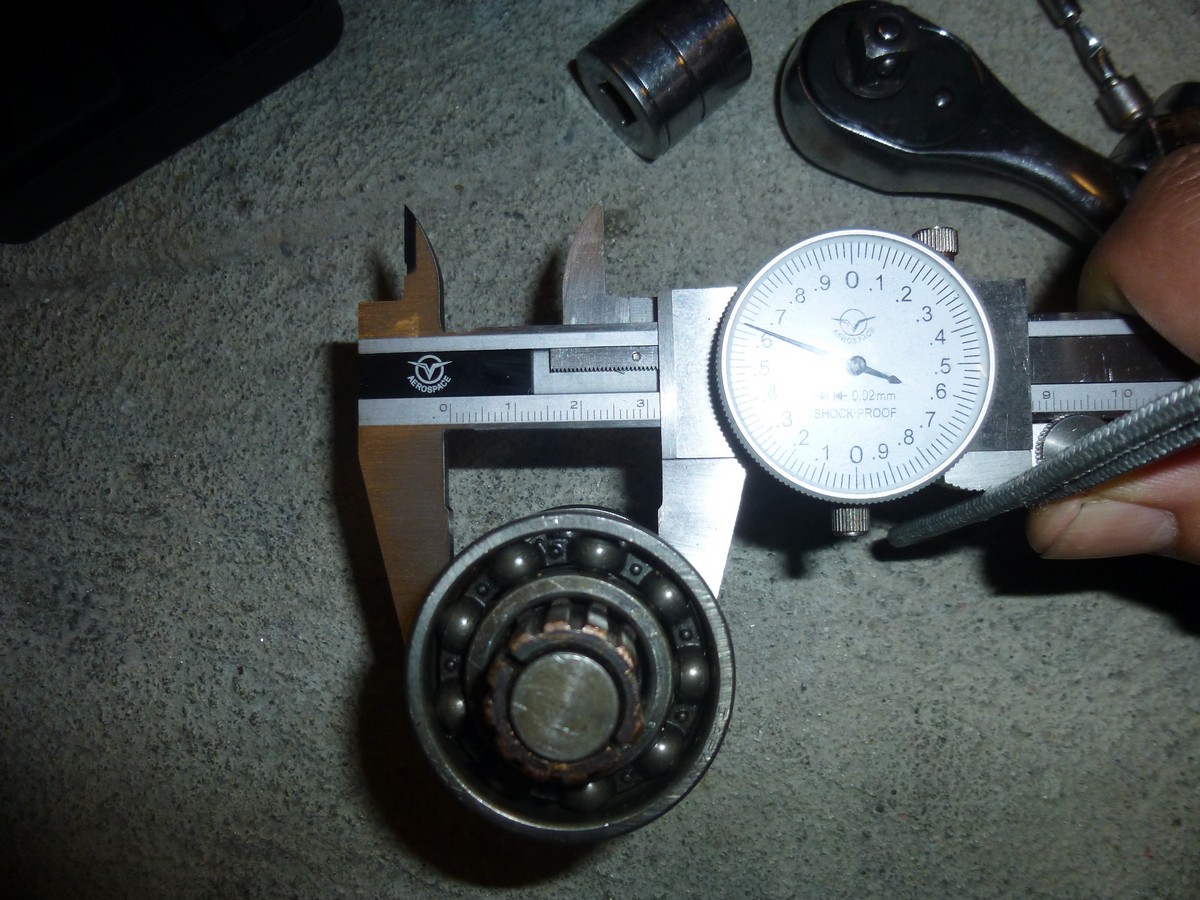

New pics

apeonwheels · Post by **apeonwheels** » Wed Nov 11, 2015 10:13 am

Sorry, does not let me upload all at once

apeonwheels · Post by **apeonwheels** » Wed Nov 11, 2015 10:15 am

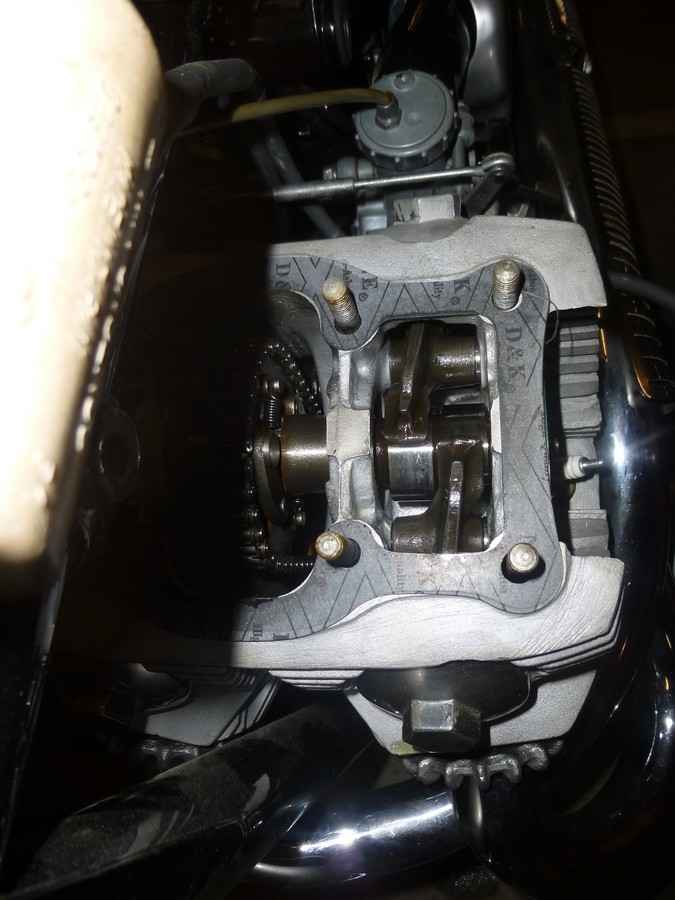

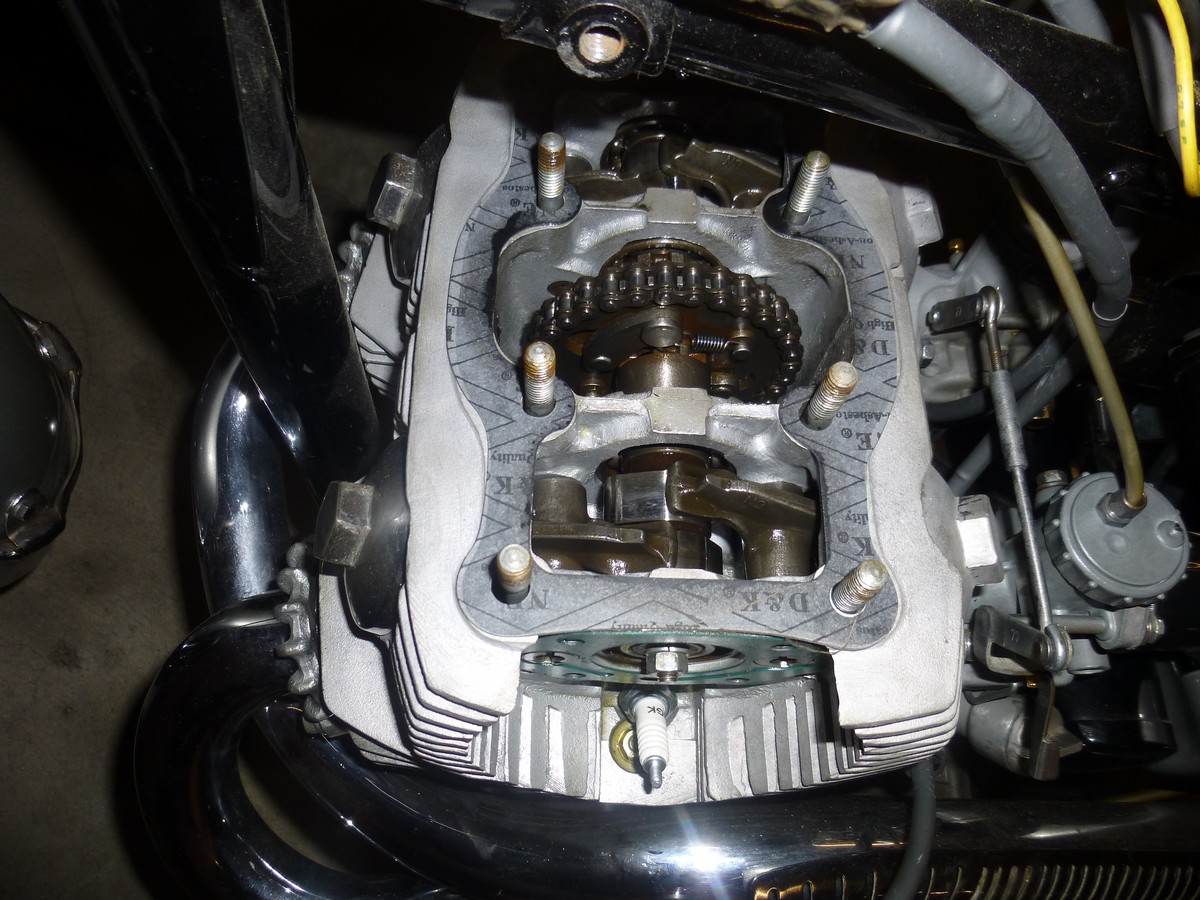

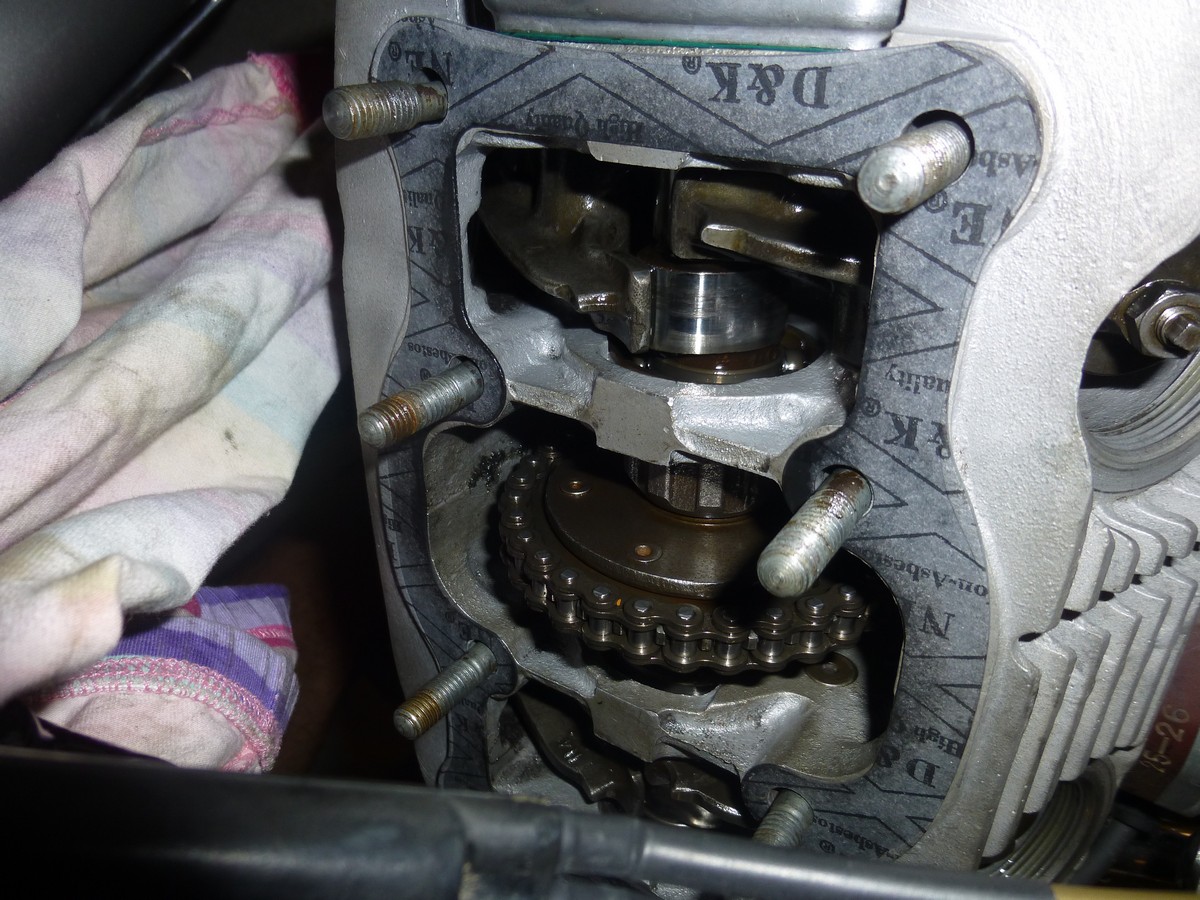

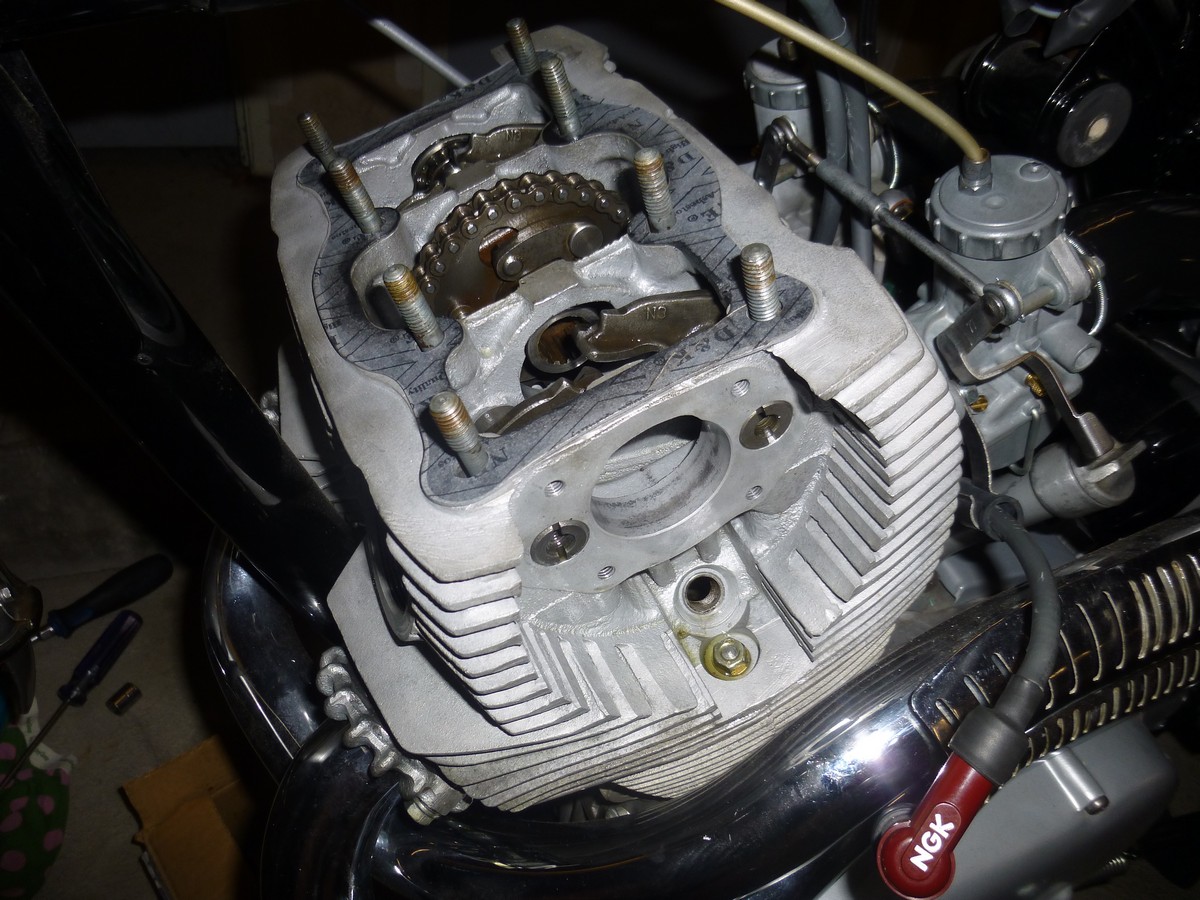

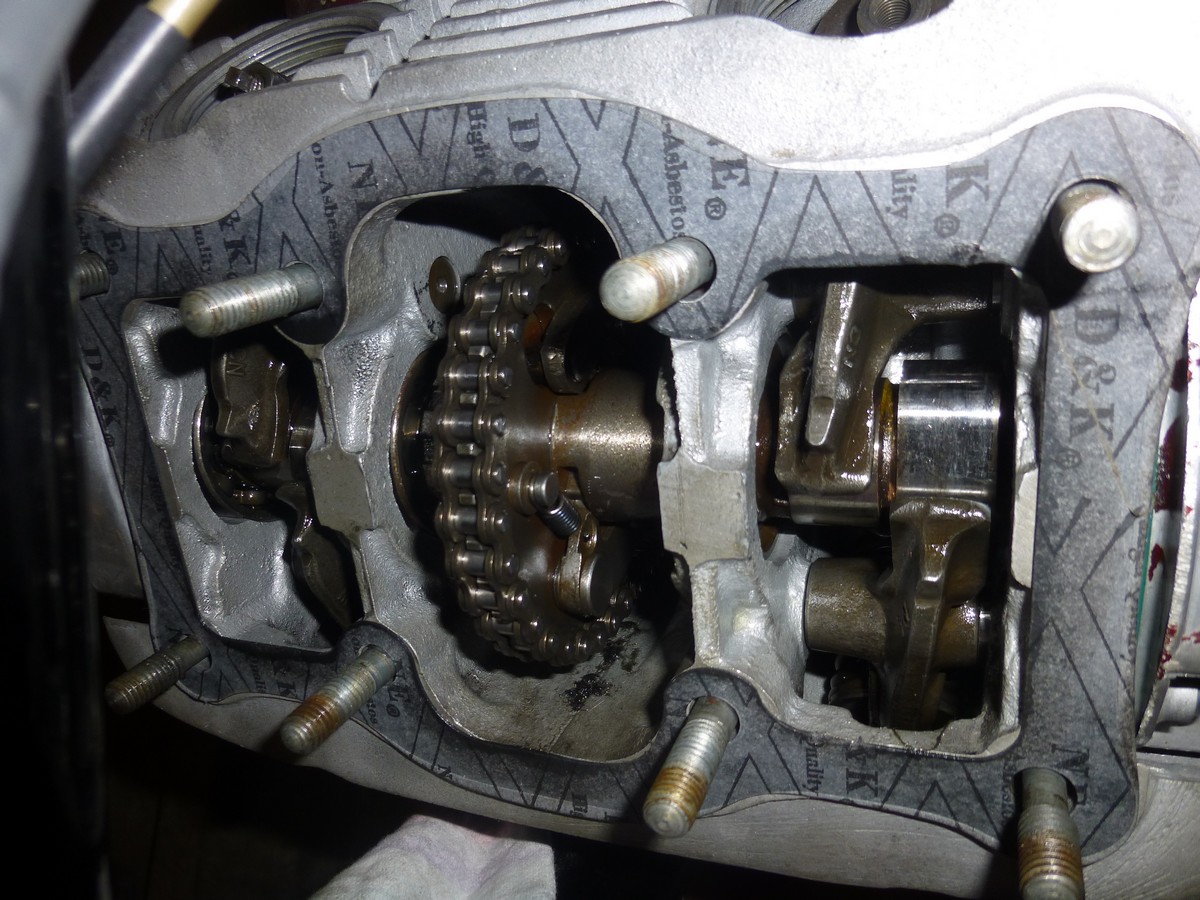

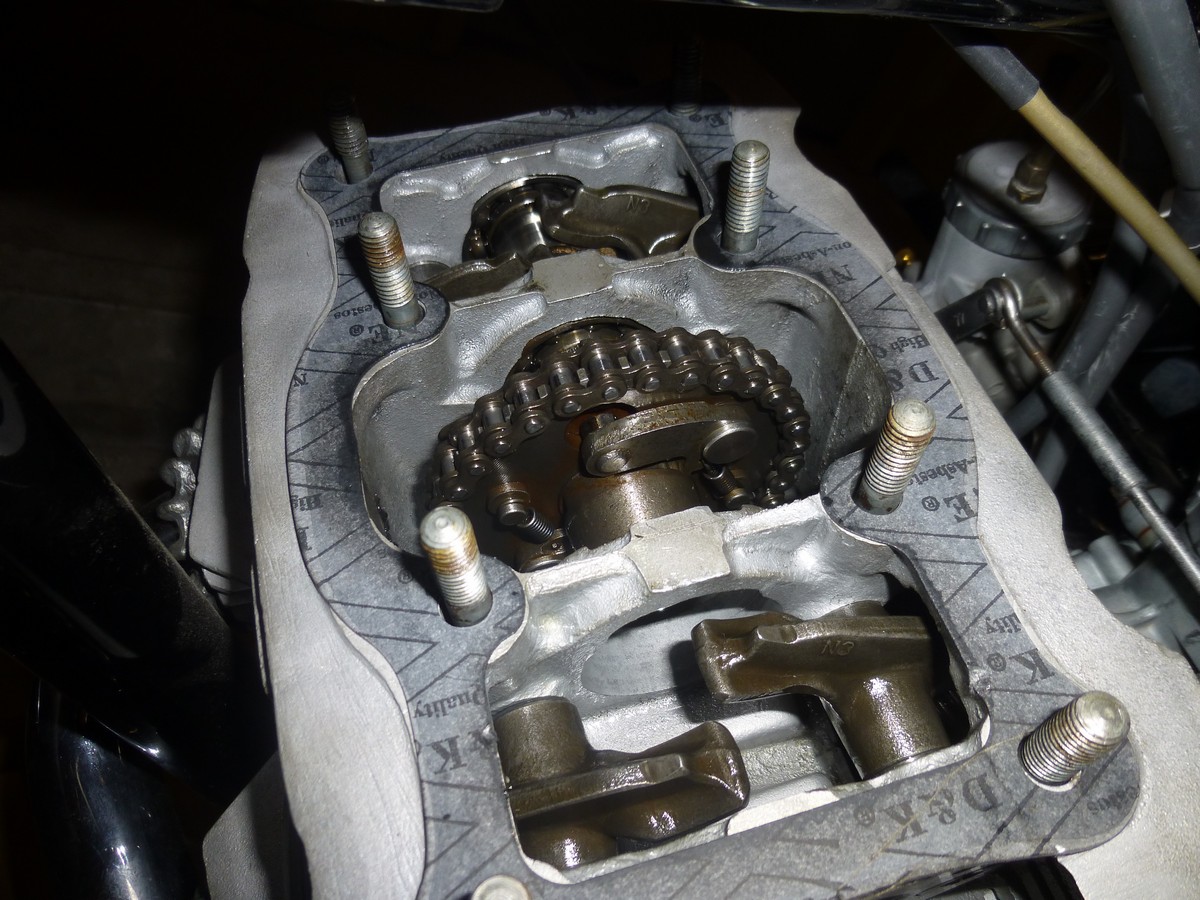

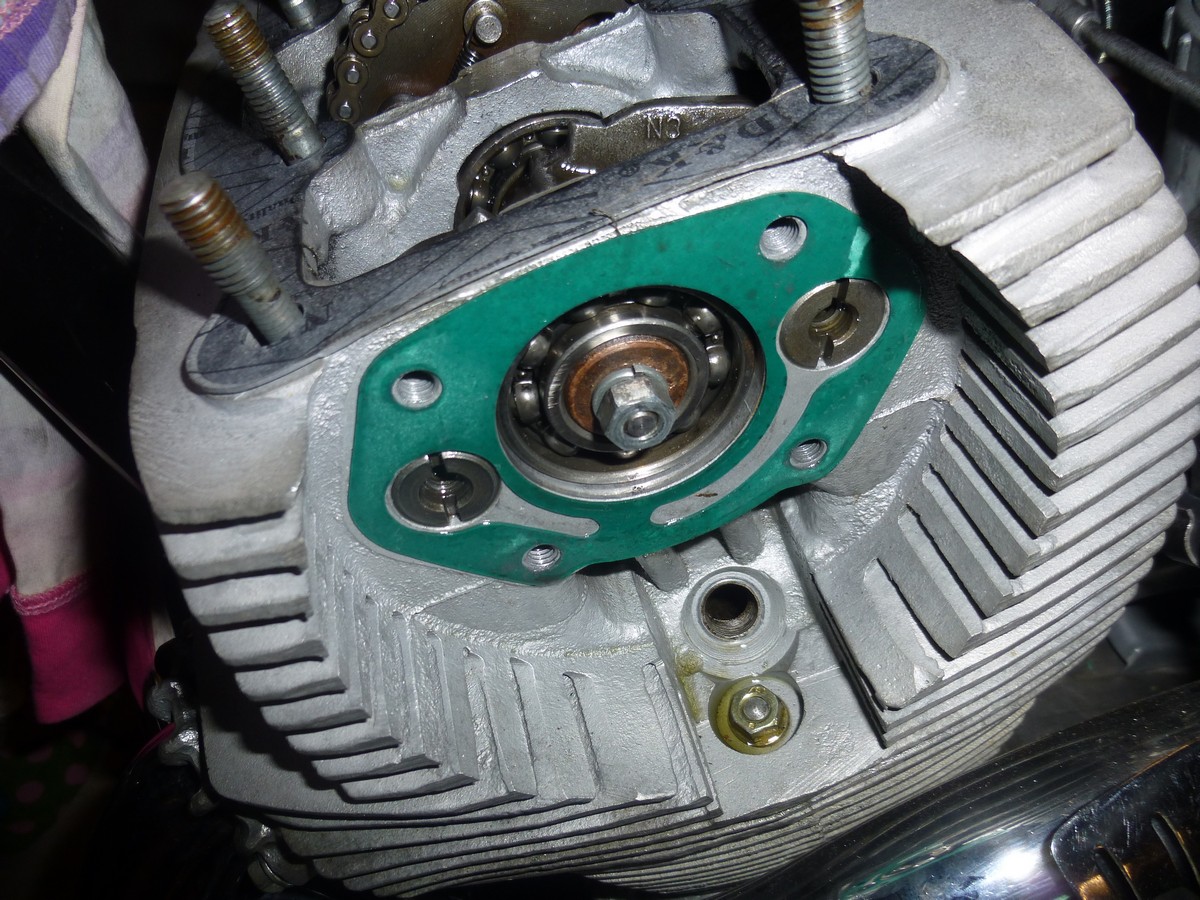

Everything seems positioned correctly

G-Man · Post by **G-Man** » Wed Nov 11, 2015 11:12 am

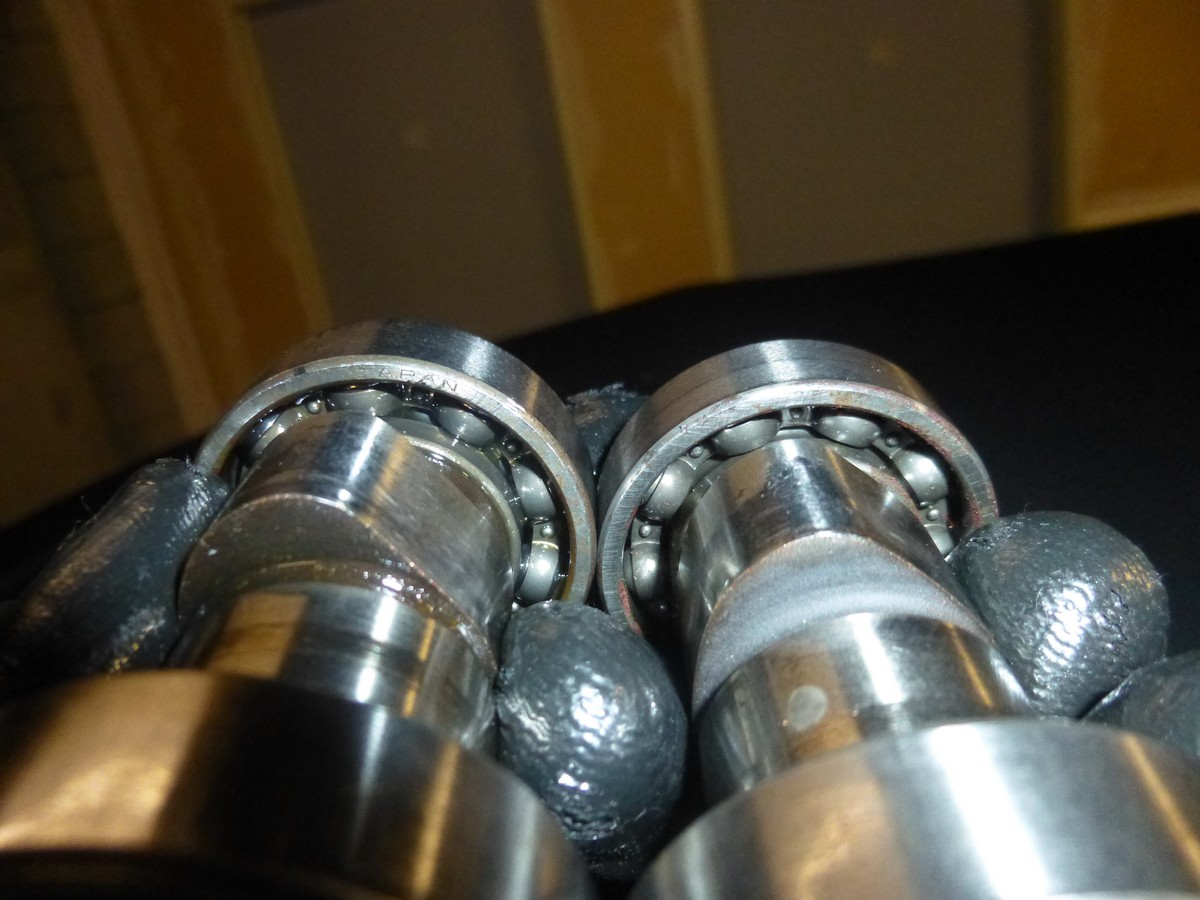

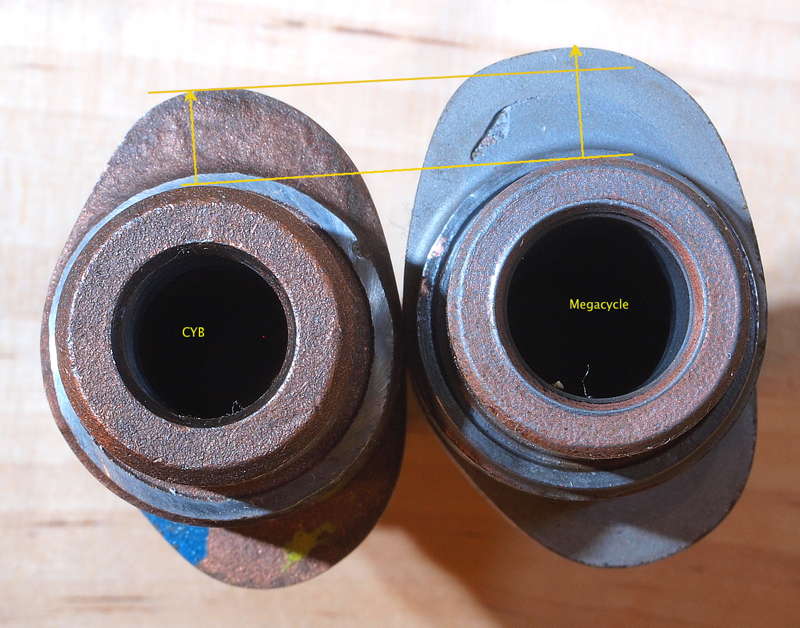

Great pictures but I find it hard to tell. These are both race cams. Left is a Honda CYB cam and right is a Megacycle. You can just see on the Megacycle where it has been welded up on a standard cam 'blank'.

G
