What bolt is this? CL77 Steering Stem

Spitfire151 · Post by **Spitfire151** » Tue Mar 11, 2014 7:36 pm

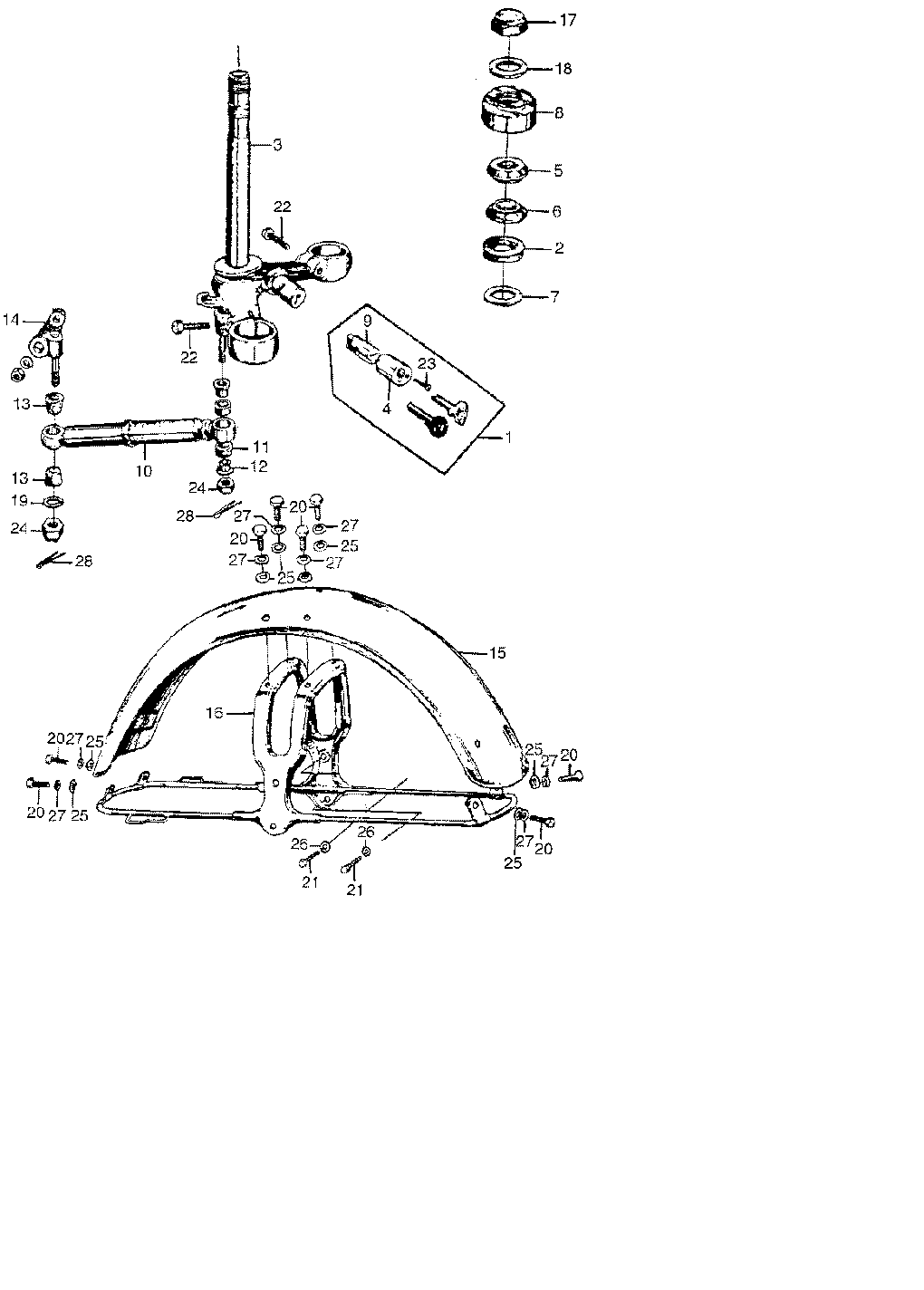

See the attached picture. I'm trying to buy #22 (listed as: 667979-9 BOLT, HEX. (10X36)).

I went to Home Depot and got metric 10 1.0 40mm bolts and they were way too hard to get in. I do not want to have to fish out any more broken bolts than I have to lol. I've done this with a Kawasaki before with no issues, what gives?

Hoosier Tom · Post by **Hoosier Tom** » Tue Mar 11, 2014 11:13 pm

You made a mistake trying to force a 1.00 fine pitch thread in that hole. The bolt that goes there is a 1.25 pitch.

HT

Spitfire151 · Post by **Spitfire151** » Wed Mar 12, 2014 5:45 am

Ah, thank you!

peter4821 · Post by **peter4821** » Thu Mar 13, 2014 11:37 am

All the hardware on that bike is 1.25

peter4821 · Post by **peter4821** » Thu Mar 13, 2014 11:37 am

All the hardware on that bike is 1.25

Hoosier Tom · Post by **Hoosier Tom** » Thu Mar 13, 2014 2:20 pm

peter4821 wrote:All the hardware on that bike is 1.25

Please clarify your "all the hardware" statement because it's not all 1.25 pitch.

HT

peter4821 · Post by **peter4821** » Thu Mar 13, 2014 2:22 pm

The screws man the screws.
