DJM wrote:Where on earth is Naarfk?
honda305.com Forum
Vintage Honda Owners, Restorers, Riders and Admirers
Latest Registry Entry
1965 Honda CP77 — Ulsan Metro City, Rep. Korea
Restored with original parts — Owner: J. Doe
UK CB77 restoration, here we go...
-
Tim Allman
- honda305.com Member
- Posts: 516
- Joined: Tue Dec 02, 2014 9:25 am
- Location: Guelph, Ontario, Canada
Thanks DJM,
Naarfk is my attempt at humor, it is the phonetic spelling for Norfolk....or that's how it is pronounced (a lovely dialect by the way).
Anyhow, this front wheel..can you tell me more ? What is it about it that makes it non CB77?

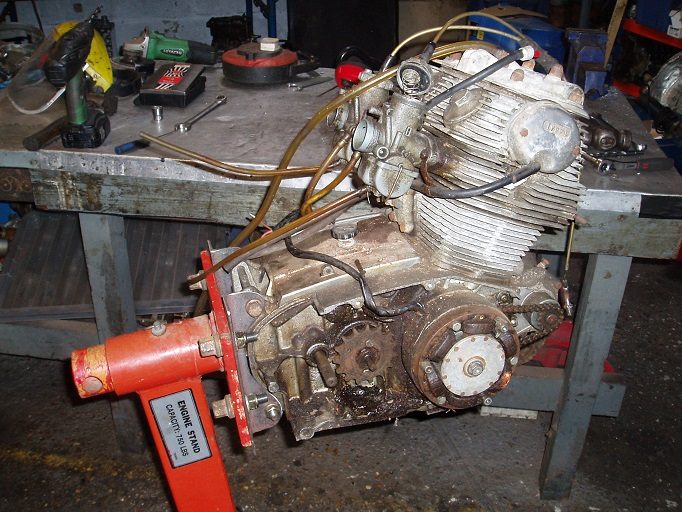

More on the resto in that I decided to start on the engine, so the first thing was to make some plates to mount it onto a mobile stand and so I could then tilt it through 360 degrees. (see pic)
The oil was drained and the filter cleaned - only a small amount of crud - but I had fun getting the oil filter cover off, breaking 3 screwdriver bits with the impact driver. And I was being gentle...! Yes they were not impact bits, but I thought it should work.
Maybe this engine had not been apart for a very long time, or not at all.
Naarfk is my attempt at humor, it is the phonetic spelling for Norfolk....or that's how it is pronounced (a lovely dialect by the way).
Anyhow, this front wheel..can you tell me more ? What is it about it that makes it non CB77?
More on the resto in that I decided to start on the engine, so the first thing was to make some plates to mount it onto a mobile stand and so I could then tilt it through 360 degrees. (see pic)
The oil was drained and the filter cleaned - only a small amount of crud - but I had fun getting the oil filter cover off, breaking 3 screwdriver bits with the impact driver. And I was being gentle...! Yes they were not impact bits, but I thought it should work.
Maybe this engine had not been apart for a very long time, or not at all.
- Attachments
-
- cb77 13dec16 004.JPG (93.21 KiB) Viewed 3063 times
-
- cb77 13dec16 013.JPG (62.14 KiB) Viewed 3063 times
The front wheel looks like it is from another bike. The CB72 / 77 has a bolted torque stay and the speedo drive is on the right hand side. The wheel you have has pressed brake arms whereas the CB72 are forged steel.
My guess for your wheel would be Suzuki Super 6 or similar, judging by the speedo drive, brake linkages and the slotted lug for torque reaction.
G
My guess for your wheel would be Suzuki Super 6 or similar, judging by the speedo drive, brake linkages and the slotted lug for torque reaction.
G
'60 C77 '60 C72 '62 C72 Dream '63 CL72
'61 CB72 '64 CB77 '65 CB160
'66 Matchless 350 '67 CL77
'67 S90 '77 CB400F
'61 CB72 '64 CB77 '65 CB160
'66 Matchless 350 '67 CL77
'67 S90 '77 CB400F
Thanks G-Man
I have been looking at my front wheel, here beside me, and noting that it agrees with what you said.... on checking the photo, which was the one on the advert, the wheels are different. The one in the picture is not the wheel that I received. So that is a good thing, in that I have the correct wheel.
Hurrah!
I have been looking at my front wheel, here beside me, and noting that it agrees with what you said.... on checking the photo, which was the one on the advert, the wheels are different. The one in the picture is not the wheel that I received. So that is a good thing, in that I have the correct wheel.
Hurrah!
