Kickstart Gear Removal (Pics)

MotoX109 · Post by **MotoX109** » Thu Aug 04, 2011 12:23 pm

I attached a couple photos pointing to the frozen kickstart pinion gear. I took off the circlip on the front, but I'm unsure how to remove. It seems that the front side has a flange that is too big to slide through the case. Does the front piece and the gear separate? It looks as though it might screw together?

Thanks!

Hoosier Tom · Post by **Hoosier Tom** » Thu Aug 04, 2011 4:10 pm

Bobby,

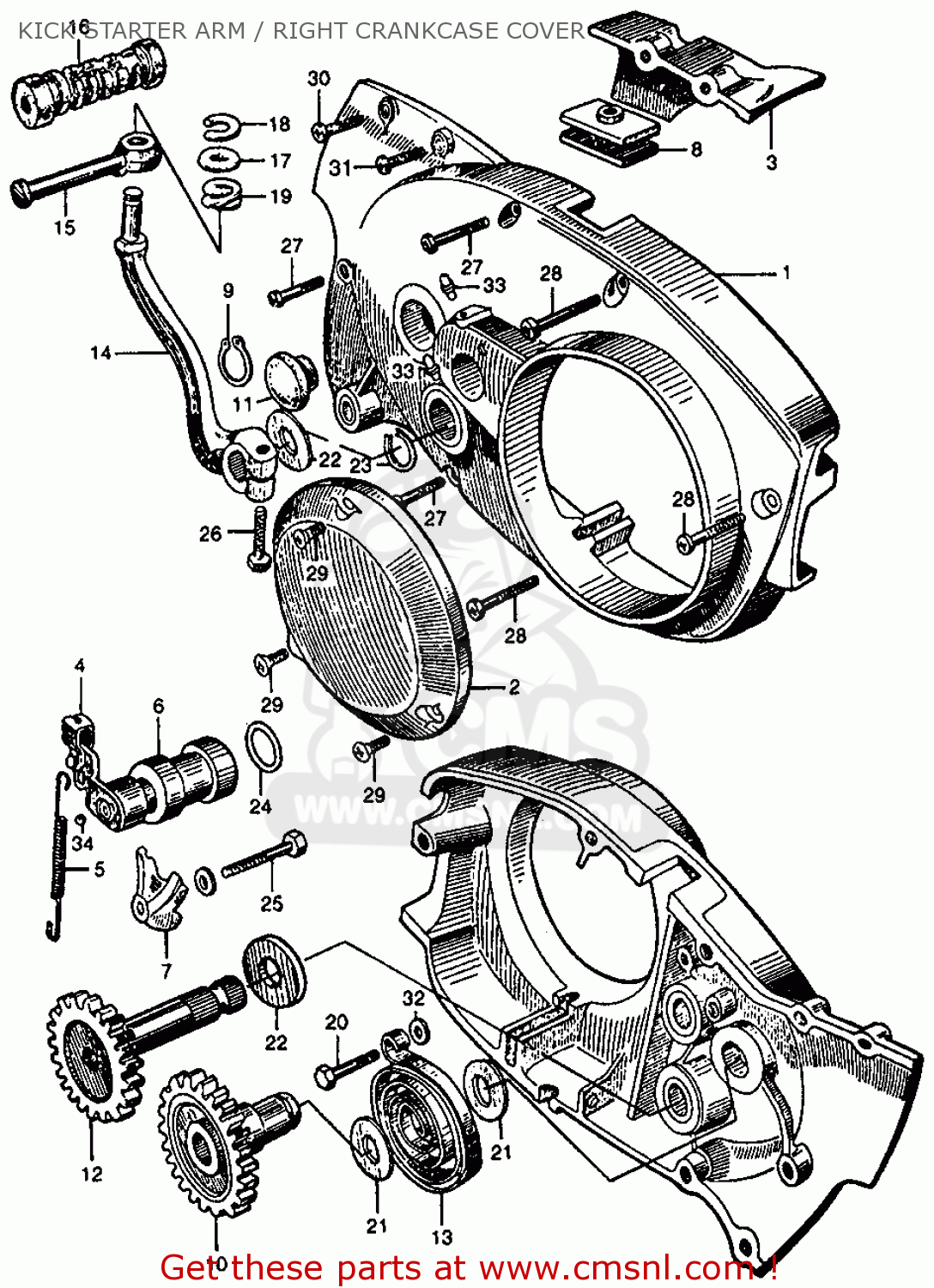

Click this link for reference http://images.cmsnl.com/img/partslists/ ... 9_c593.gif

You can access the CMS website for more sections of the parts diagrams. That gear is one piece. I would remove the kick start gear first after popping the set ring. Then remove the bolt that anchors the spring. I use a propane torch to lightly heat the alloy cover around the gear shaft to expand the holes if either gear is stuck. That should do it.

Good luck- HT

MotoX109 · Post by **MotoX109** » Sat Aug 06, 2011 11:49 am

Thanks! I'll be back working on the bike later today

LOUD MOUSE · Post by **LOUD MOUSE** » Sat Aug 06, 2011 1:30 pm

Be careful with any propane heat as there is a phenolic/plastic bushing at the other gear. .........lm

MotoX109 wrote:Thanks! I'll be back working on the bike later today
